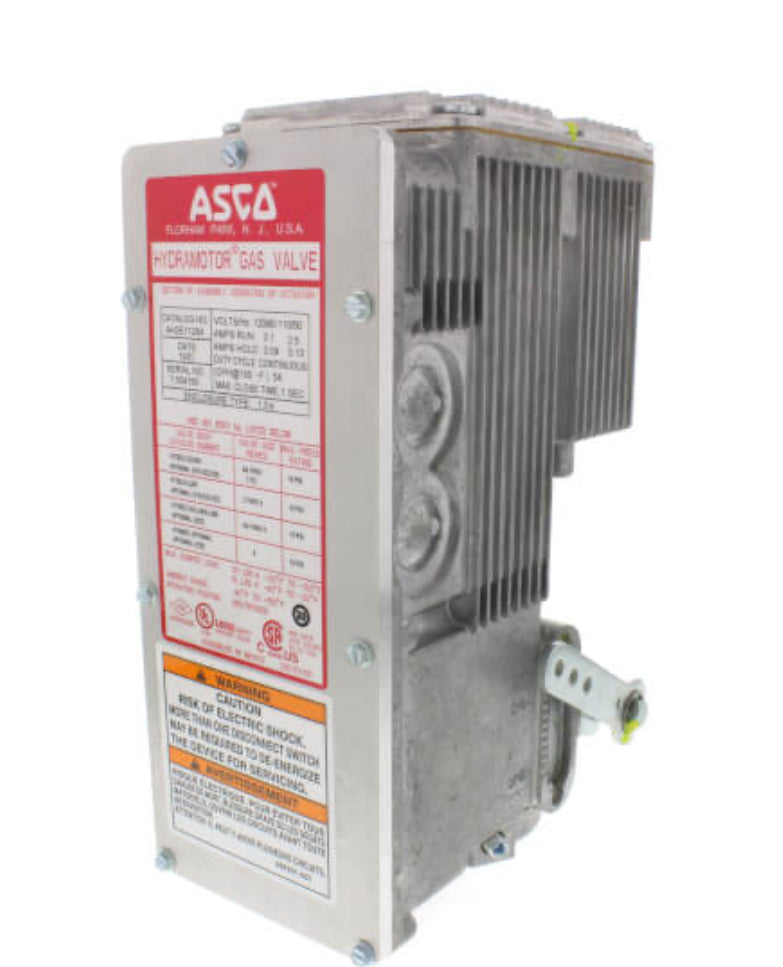

Asco AH2E112S4 Hydramotor Actuator On-Off General Purpose & Watertight for V710 Gas Body 120V Fast Opening Proof of Closure

The AH2 Hydramotors are push-type, self-contained, electrohydraulic linear actuators which extend when powered and retract by spring force upon power interruption.

AH2 Hydramotors provide a fast spring return shutoff time of one second or less. When the actuator is mounted to a V710 gas valve, position indicators on both sides of the actuator show the open or closed position of the valve.

The AH2 Hydramotor/V710 gas valve combination provides reliable main line gas control for a wide range of applications, including boilers, furnaces, ovens and all types of industrial and commercial burners. It is available in either a slow or fast opening construction.

• On-Off Fast Opening (14 seconds Max) (Watertight)

Includes:

• Damper shaft & arm

Installation

• AH2E Hydramotor mounts in any position directly to a V710 valve with 3 set screws.

Damper Arm Rating

• Drives damper in one direction only. 20 lb. max. at 2.85° radius at 20°F to 150°F and 10 lb. max. at -40°F to 20°F. Travel 2" max.,

• UL listed to standard 429 "Electrically Operated Valves," Guide YIOZ, File MP932 Safety Valves
• FM Approved to Class 7400 liquid and gas safety shutoff valves."
• CSA Certified to:
  1. Automatic Gas Valves ANSI Z21.21 CSA 6.5, C/I, File 109157 and 113070.
  2. Automatic Gas Safety Shutoff Valves (CGA 3.9), File 113070
  3. Standard C22.2 No. 139, File 109157 and 113070
