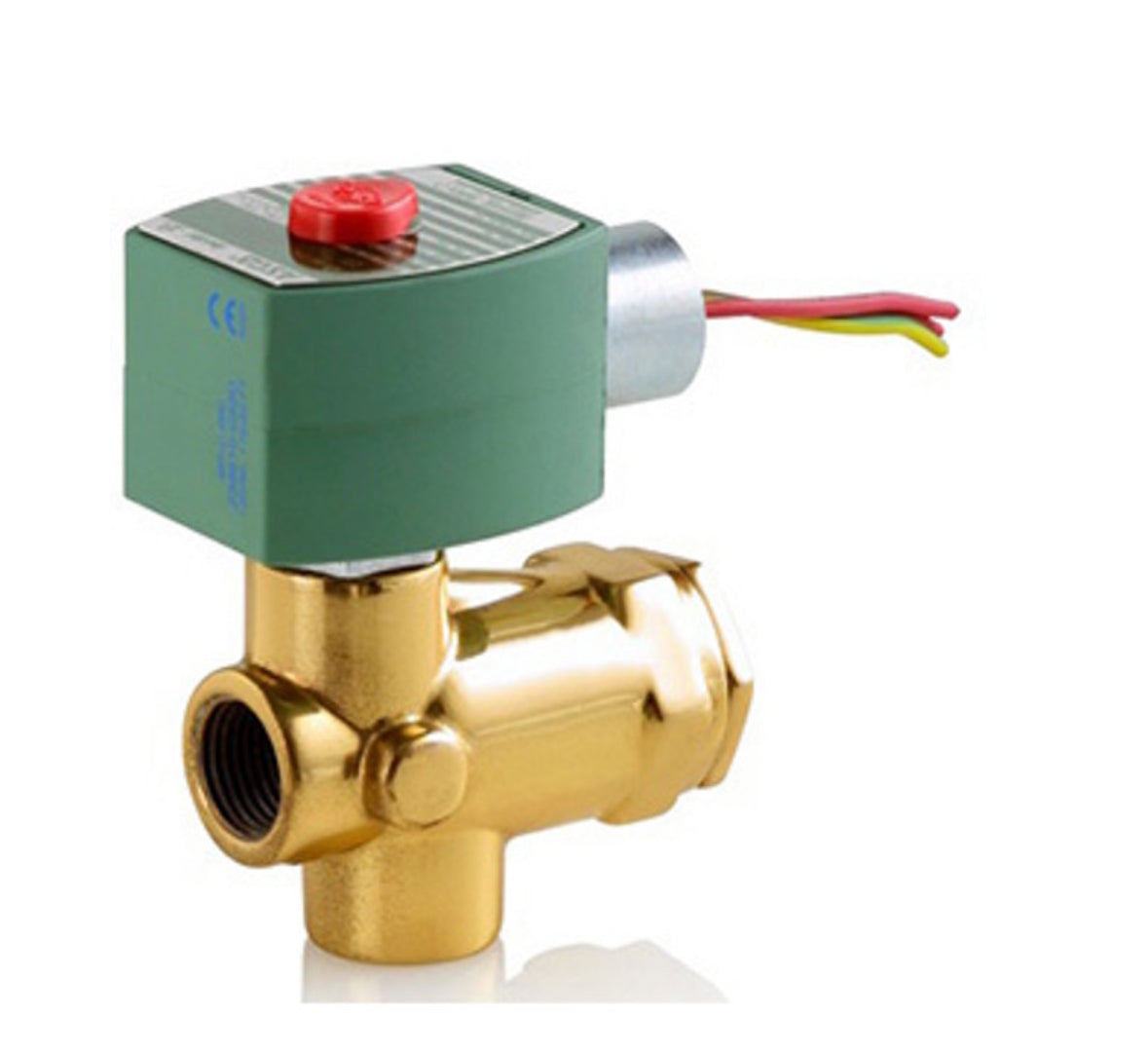

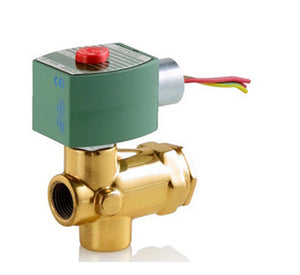

High Pressure Solenoid Valve; Type 2-Way/2-Position, Pilot Operated; Port Connection 1/2 Inch Female Threaded x 1/2 Inch Female Threaded; Valve Position Normally Closed; Body Material Brass; Enclosure Type NEMA 1/2/3/3S/4/4X; Input Supply Rating 110 Volt AC 50 Hertz, 120 Volt AC 60 Hertz; Temperature Rating 200 Deg F (Fluid); Pressure Rating 25 to 1500 PSI (Air-Inert Gas/Water/Light Oil); Media Handled Air-Inert Gas, Water, Light Oil; Inclusions/Features 305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Core Spring, Copper Shading Coil; Applicable Standard CSA, CE; Power Rating 17.1 Watt; Orifice Size 3/8 Inch; Flow Factor 3.2 Cv; Coil Insulation Type Class F; Ambient Temperature Rating 32 to 125 Deg F
Features/BenefitsRugged piston construction built to withstand pressure ratings to 1500 psi; Angle body design for high flows; Ideal for high-pressure water applications, such as car washes; Mountable in any position
Inclusions/Features305 Stainless Steel Core Tube, 430F Stainless Steel Core and Plugnut, 302 Stainless Steel Core Spring, Copper Shading Coil,
