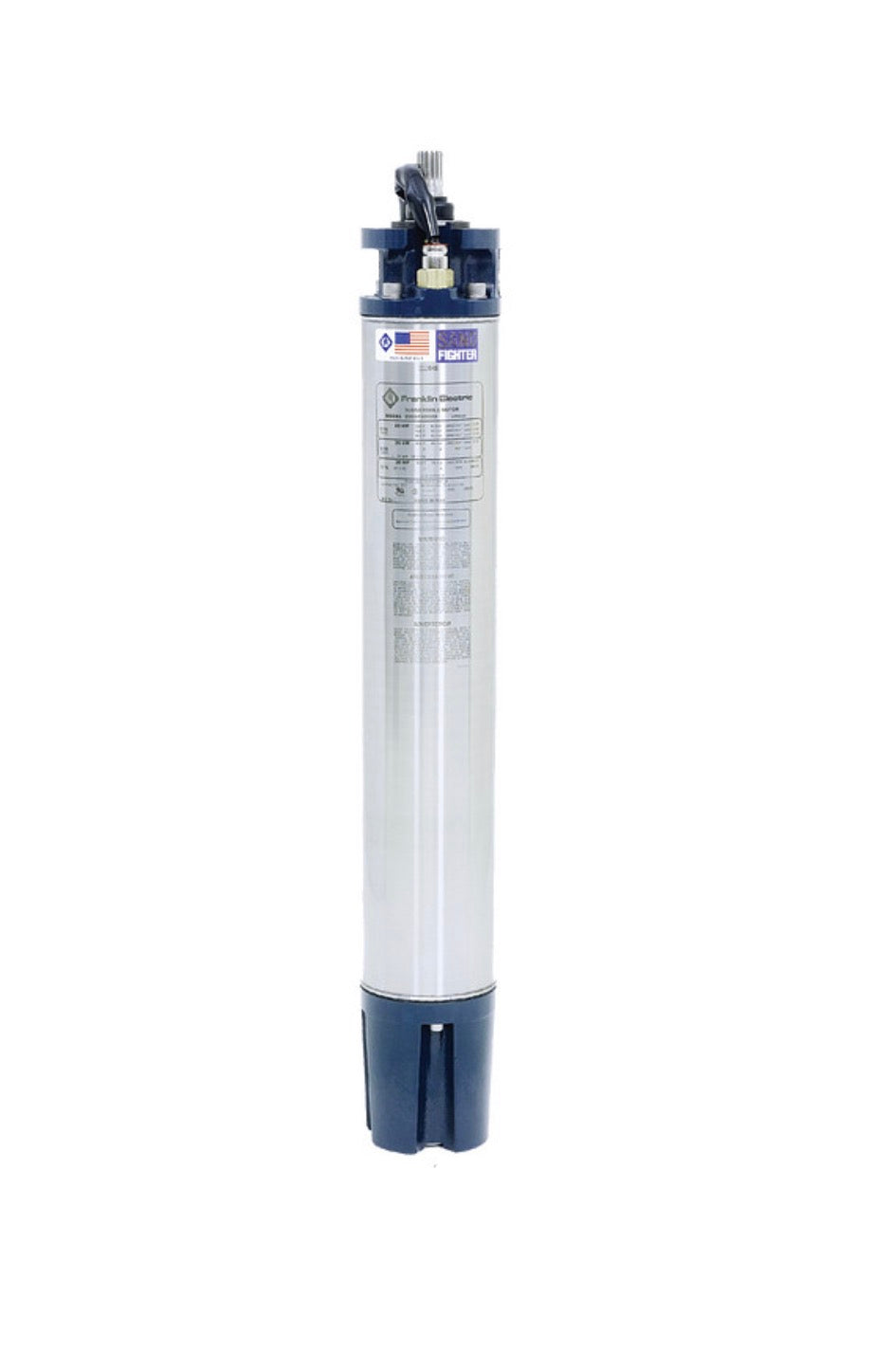

Franklin Electric 2366188125 Sand Fighter Motor- w/Subtrol 6" 50-HP 460/380-Volts 60/50-Hz Three-Phase 3-Wire

Franklin Electric 6" Submersible Motors

Franklin’s 6-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last and come in a variety of construction options.

These motors provide large amounts of water for irrigation, community water systems and factories where large flows or pressures are required.

Franklin Electric 6" Submersible Motors Basic Features

• Double Flanged NEMA Mounting Design
• Stainless Steel Splined Shaft
• Stator Shield Franklin's Six Feature Encapsulation System
• High-Capacity Kingsbury Type Water Lubricated Thrust Bearing
• Factory-Filled with Franklin's Non-Toxic Water Soluble Fill Solution
• Field Replaceable Lead using Franklin's Exclusive Water Bloc™ Technology
• Full 3450 RPM 60 Hz Design Point
• External Sand Slinger on Shaft
• Mechanical Face Seal at Shaft Exit
• Copper Bar Rotor
• All Models Variable Frequency Drive (VFD) Compatible
• Single-Phase Models must be used with a Franklin Electric Control Box
• SPECIAL FEATURES:
• 316 Stainless Steel: Special Construction Option for Acid, Low PH and Seawater Applications. All 316 SS Motors Included a Subtrol Heat Sensor.
• Sand Fighter: Models Include Subtrol Heat Sensor on 40, 50 and 60 HP Models.
