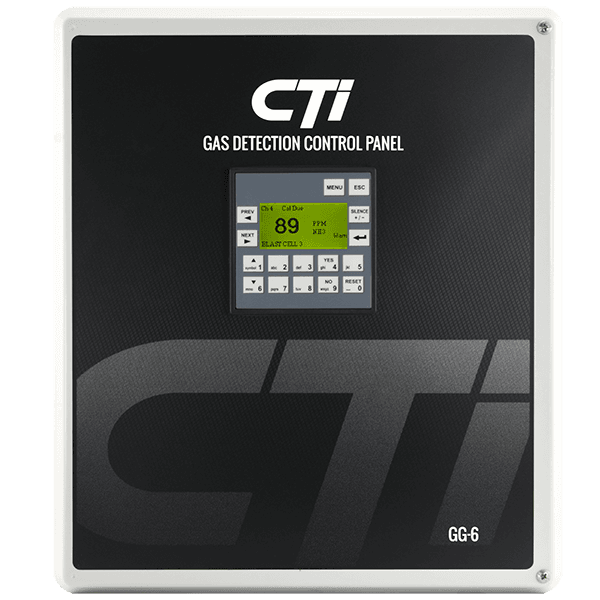

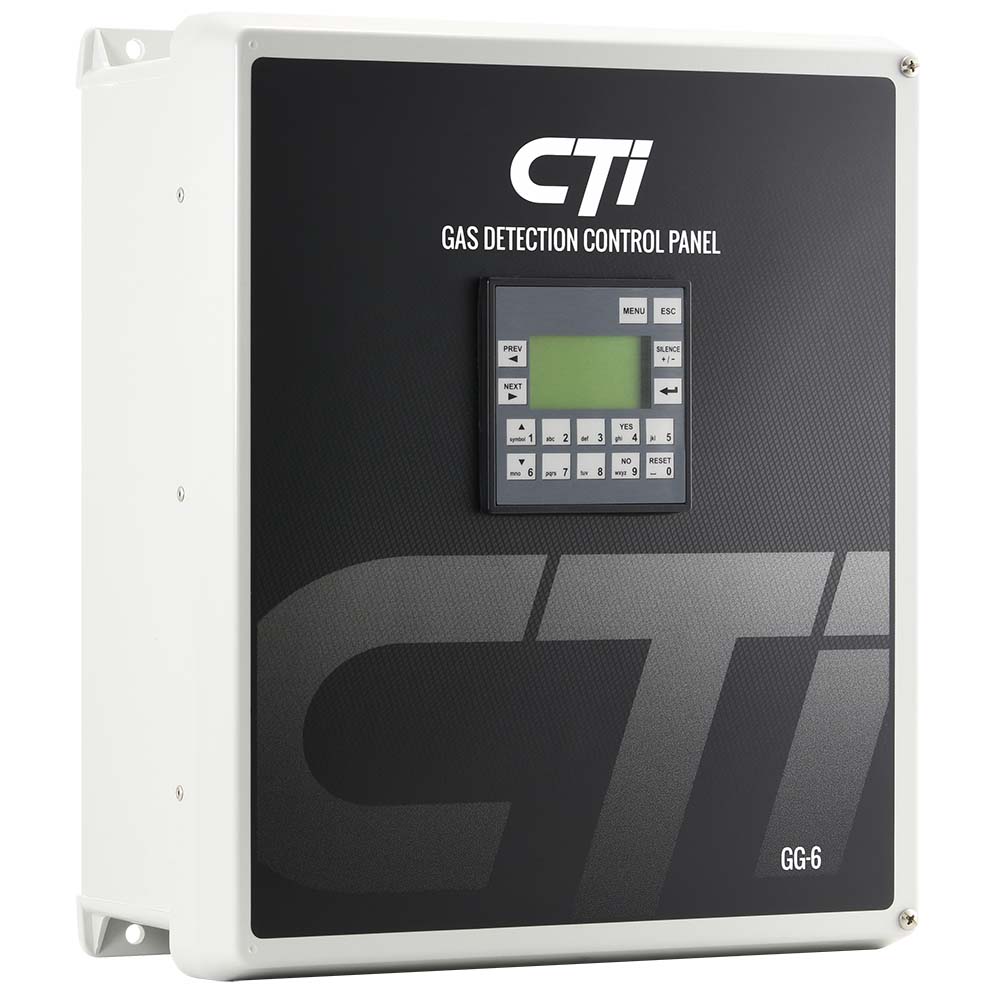

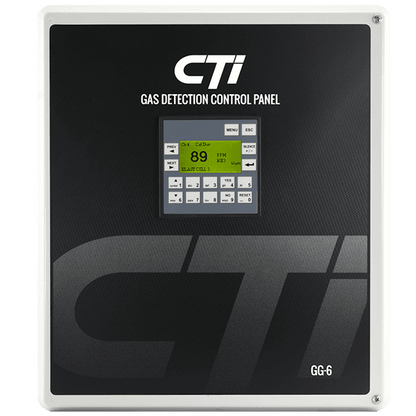

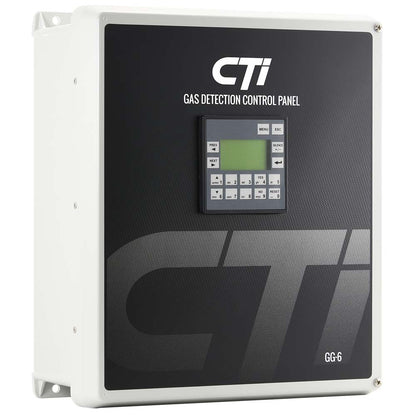

GG-6 Control Panel CTI Gas Detector Controller
Regular price
$3,775.00 USD
Regular price
Sale price
$3,775.00 USD
Unit price
per
Shipping calculated at checkout.
- 6-Channel Gas Monitor (expandable to 30 channels using GG-XM expansion modules).
- 4/20 mA inputs for use with all CTI gas detectors outputting 4-20 mA.

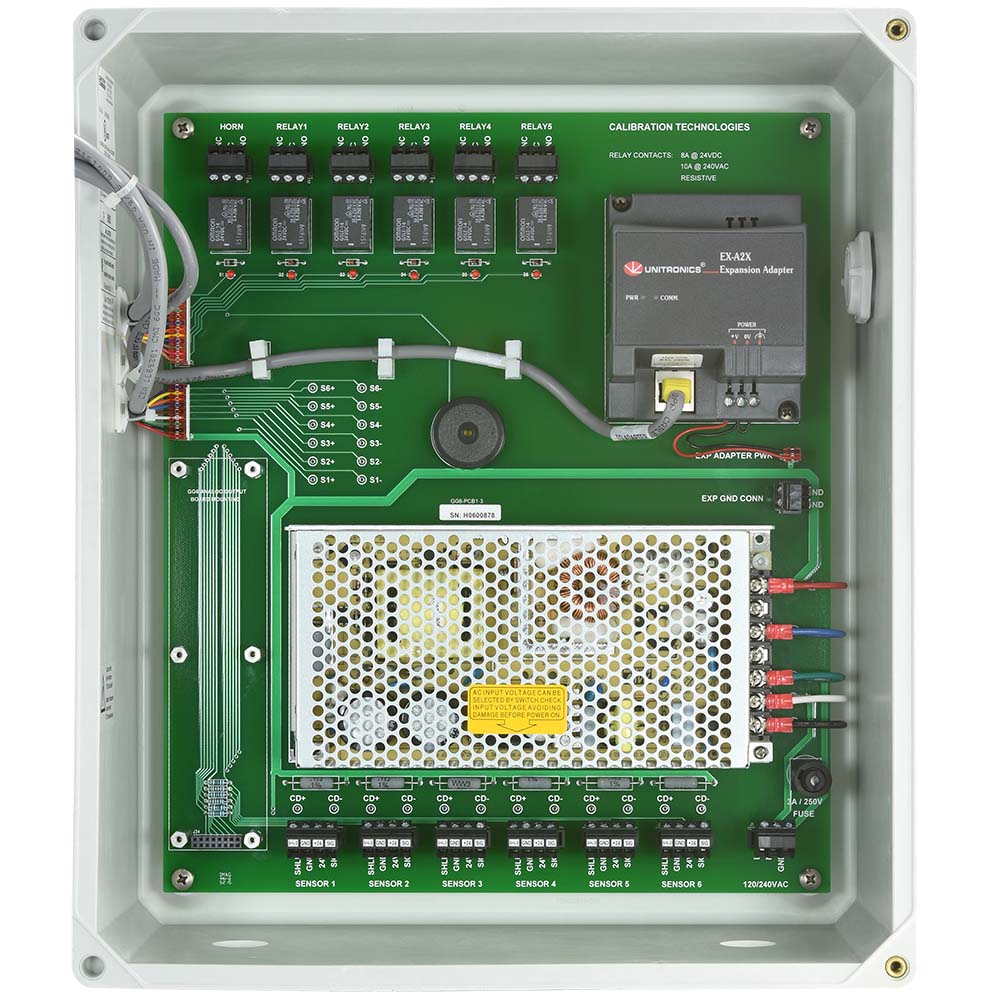

- Includes: graphic LCD display, six programmable 10A relay outputs, event logging, dual adjustable set points per channel, and power supply. Analog output board and ethernet output optional.
- Remote reset and silence capable.
- System configuration through user friendly menu-driven LCD operator interface.
- Can accommodate up to three expansion modules (GG-XM) maxing out at 30 sensors total (8 sensors on each GG-XM).
- Weatherproof NEMA 4X polycarbonate enclosure safe for outdoors and wash-down areas.
- SGS listed to UL 61010-1, and CSA C22.2 No. 61010-1-12
