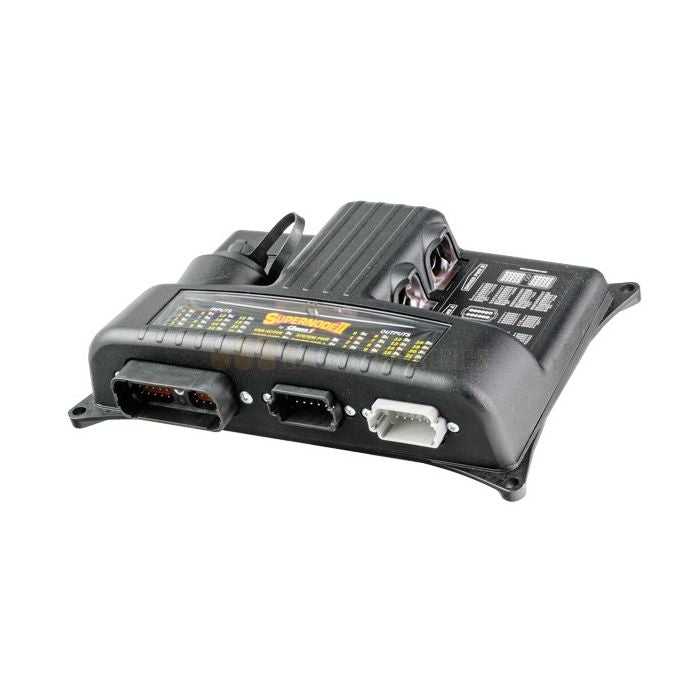

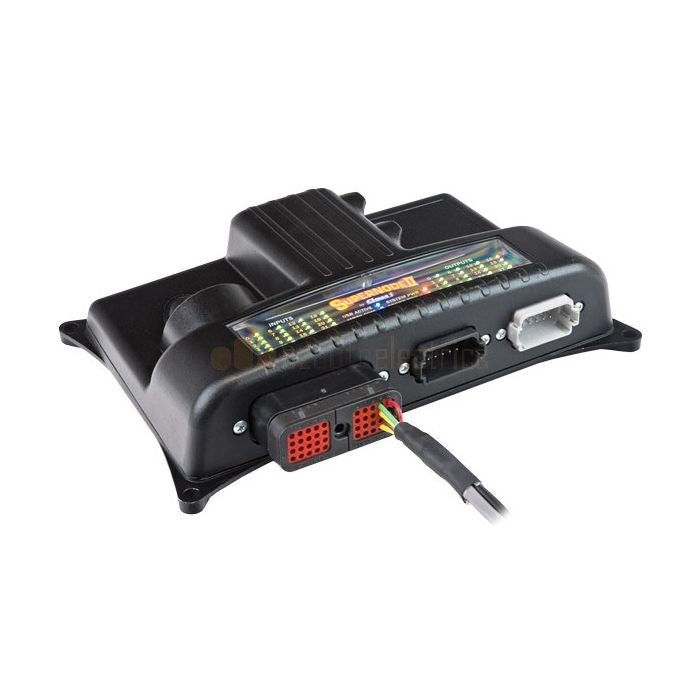

Ionnic 119890 Supernode II System Manager - ES-Key

The Supernode II consolidates the functions of several Es-Key modules - USM, Data Logger, Seatbelt, Vehicle Data Recorder (VDR), Climate Control, Digital Input/Output Module & Power Distribution Module. This reduces node count and simplifies addressing. Making it well suited for applications where a centralised node location is required.

• SAE J1939 CAN engine message reception and Es-Key network controller.
• Digital circuit breakers on all positive outputs.
• Output ‘open load’ detection.

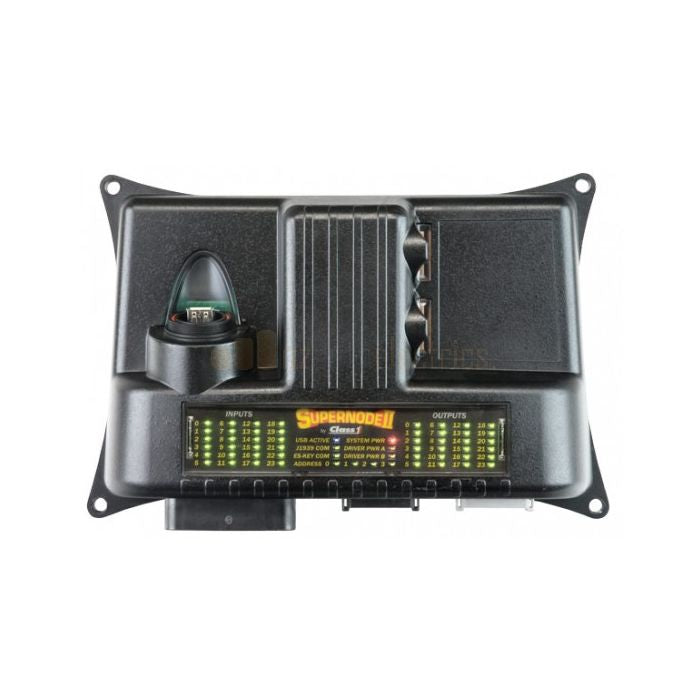

• Diagnostic LED indicators.
• Optional modem available upon request.
• Environmentally sealed - IP67.
• Multi-voltage.

Specifications:

• Voltage:9-32V
• Body:Die-cast
• Current Draw:500mA @ 13.8V
  350mA @ 27.6V
• Inputs:24 Polarity selectable
• Outputs:18 Positive
  @ 13A
  6 Negative
  @ 2A
• IP Rating:IP67
• CAN:SAE J1939
• Operating Temp:-40°C to 85°C
• Note:Optional integrated modem available
