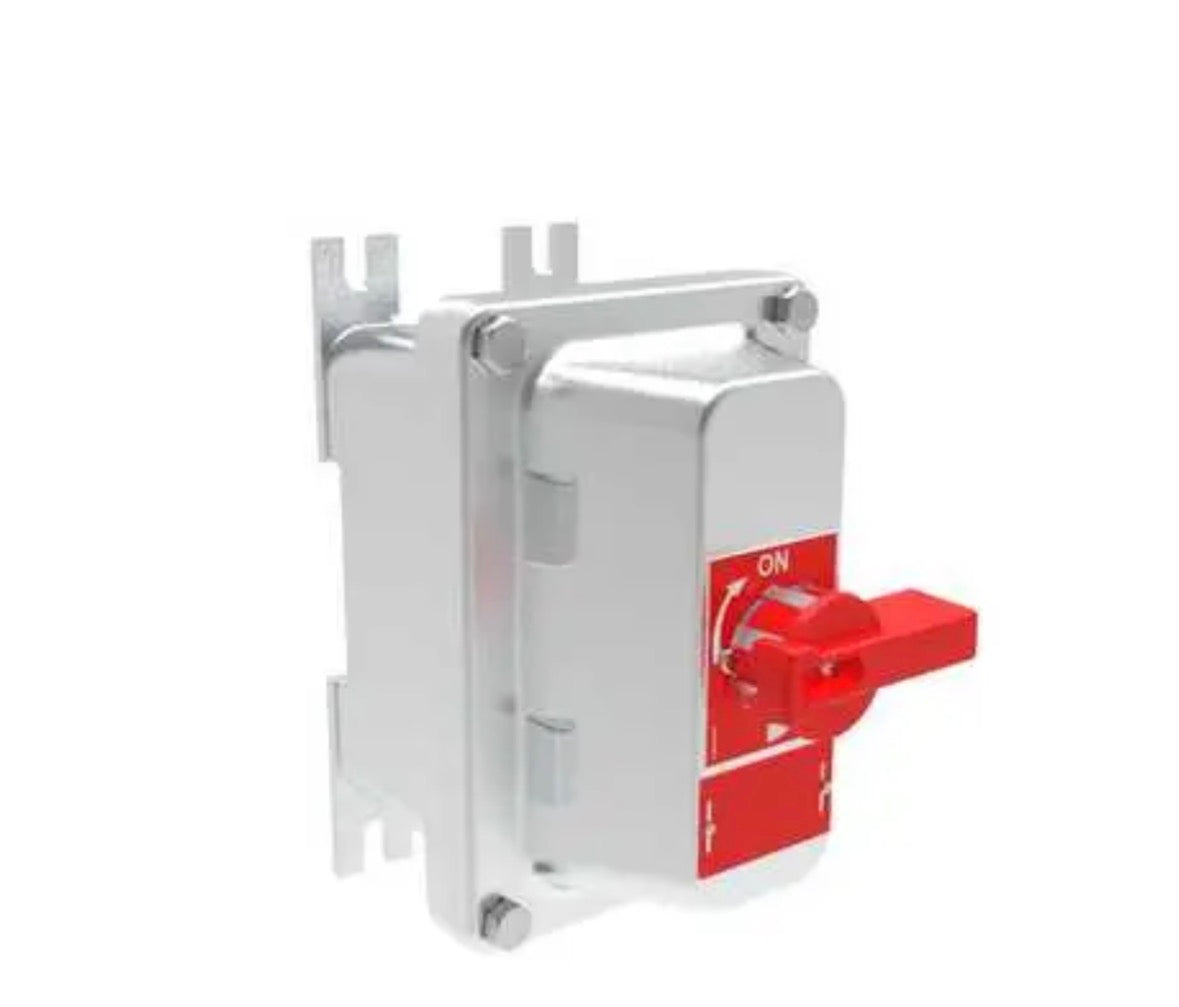

Killark b7nfd13a Non-Fusible Disconnect Switch
Regular price
$1,799.00 USD
Regular price
Sale price
$1,799.00 USD
Unit price
per
Shipping calculated at checkout.
B7NFD Series - Aluminum Feed-Thru Compact Non-Fusible Disconnect Enclosure with ABB Switch - Conduit Hubsize 1 In NPT - 30 Amps/3 Phase/600 Volts
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Few cover bolts reduces installation and maintenance time.
- Gasketed flange with O-ring located inside bolt circule to seal out moisture.
- Rotary handle style operating mechanism with lockout provision as standard.
- Removable ductile mounting lugs adjust to irregular mounting surfaces.
- Bodies have top and bottom drilled and taped conduit entrances for power connections, with custom openings available.
- ABB UL98 certified switch supplied for 600VAC, 30, 60 & 100 Amp unit available.
- ABB UL508 certified switch supplied for 600VAC, 16, 32, 40, 63 & 80 Amp unit available.
- Enclosures - Copper-free cast aluminum (less than 4/10 of 1% copper content).
- Cover bolts 316 Stainless Steel
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
