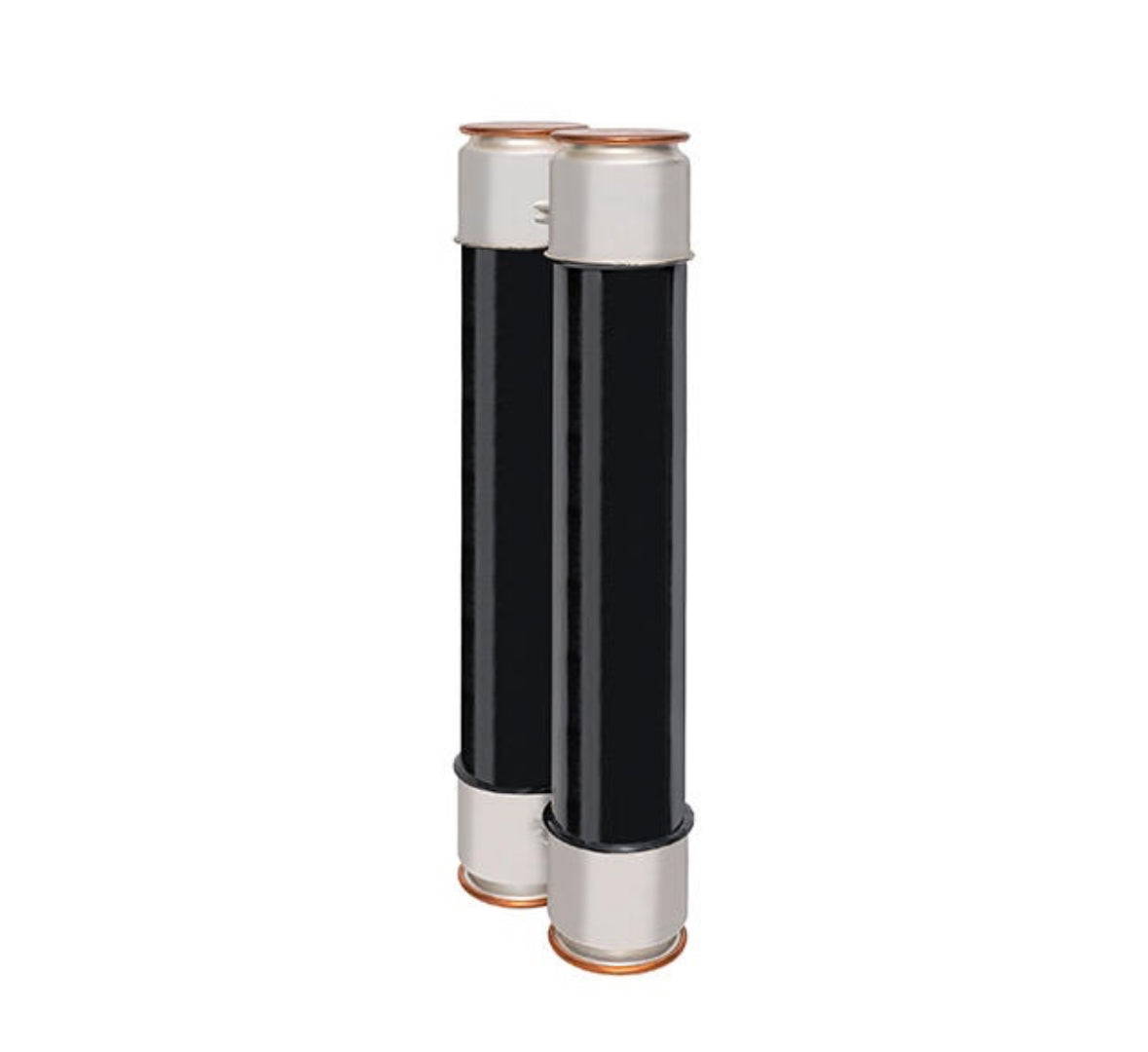

Mersen 9F62FDD150 Transformer Fuse - 15500 Volts, 150 Amp

Mersen 9F62FDD150 Transformer Fuse - 15500 Volts, 150 Amp
Regular price $1,999.00 USD
Regular price Sale price $1,999.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:

Availability : Low stock: 1 left

View Product details
product-img
Mersen 9F62FDD150 Transformer Fuse - 15500 Volts, 150 Amp
Regular price $1,999.00 USD
Regular price Sale price $1,999.00 USD
Shipping calculated at checkout.

Mersen 9F62FDD150 - Mersen fuses for the protection of transformers and distribution lines deliver overload and short circuit protection. These current-limiting fuses will melt at current that can be as low as 1.7 times the fuse current ratings up to its maximum interrupting rating. These fuses are designed to withstand the transformer magnetizing inrush current. They have 2" (size C), 3" (size D) and 2x3" (size DD) inch diameter barrels with ferrules and are mounted in spring reinforced clips.

Specifications
Manufacturer Mersen
Fuse Amperage Rating 150 Amp
Indication System Type Visual Indicator
Connection/Terminal Material Silver-Plated Copper
Mounting Clip
Connection/Terminal Type Ferrule
Fuse Voltage Rating 15500 Volts
Body/Insulating Material Epoxy
Fuse Protection Type Transformer
Component Transformer Fuse
