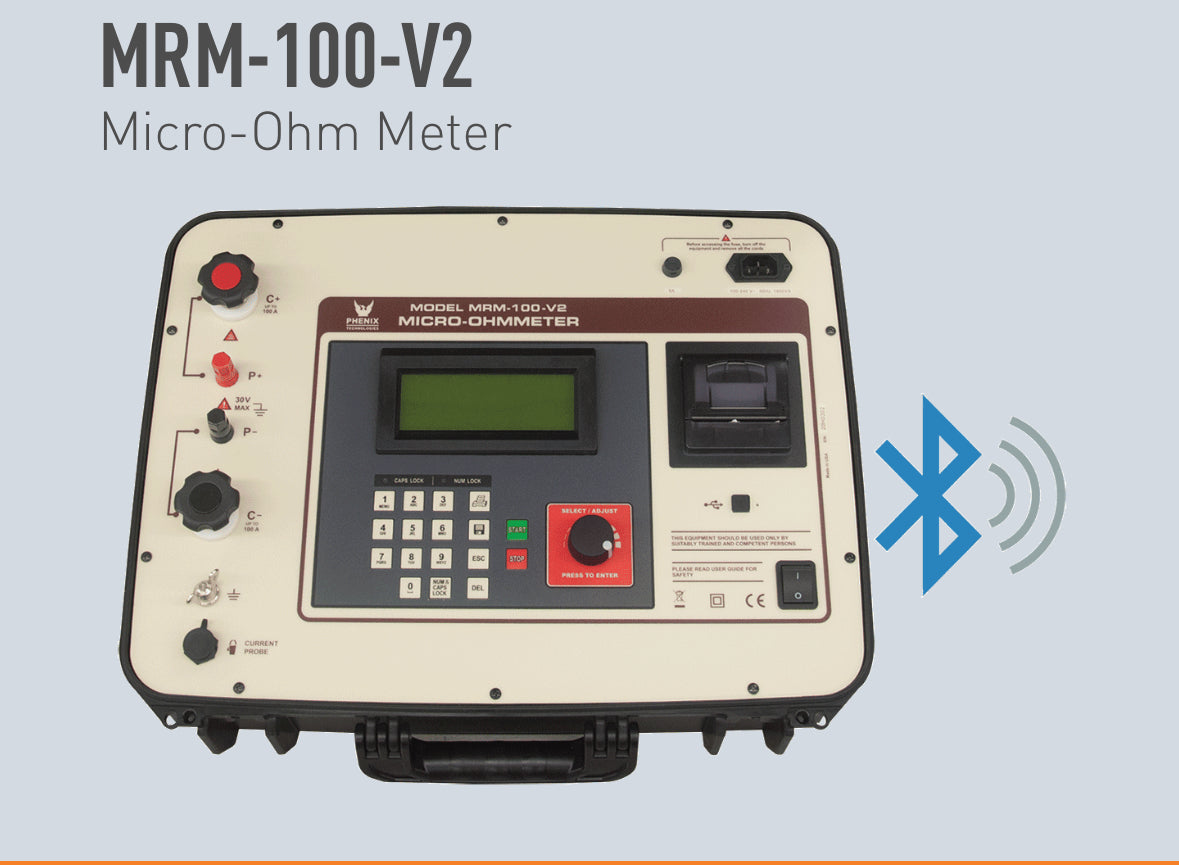

MRM-100-V2
Micro-Ohm Meter
Regular price
$6,999.00 USD
Regular price
Sale price
$6,999.00 USD
Unit price
per
Shipping calculated at checkout.
Testing Applications
5 A-100 A (True DC), 0.1 µΩ resolution, Built-in memory and printer, Both Side Grounded for substation testing
Accurately measure very low contact resistances of switches and circuit breaker contacts, transformer and motor windings, wire and cable samples, joints in busbars, or any application where low resistance current is required.
| MODEL | MRM-100-V2 |
| TEST CURRENT | 5 A – 100 A (True DC) |
| RESISTANCE RANGES | 0.1 μΩ to 2 mΩ, with 0.1 μΩ resolution 2 mΩ to 300 mΩ, with 10 μΩ resolution |
| RESOLUTION | up to 0.1 μΩ |
| INPUT | 100-240 V, 50/60 Hz |
| BASIC ACCURACY | ±1% of reading from 50 μΩ to 300 mΩ |
