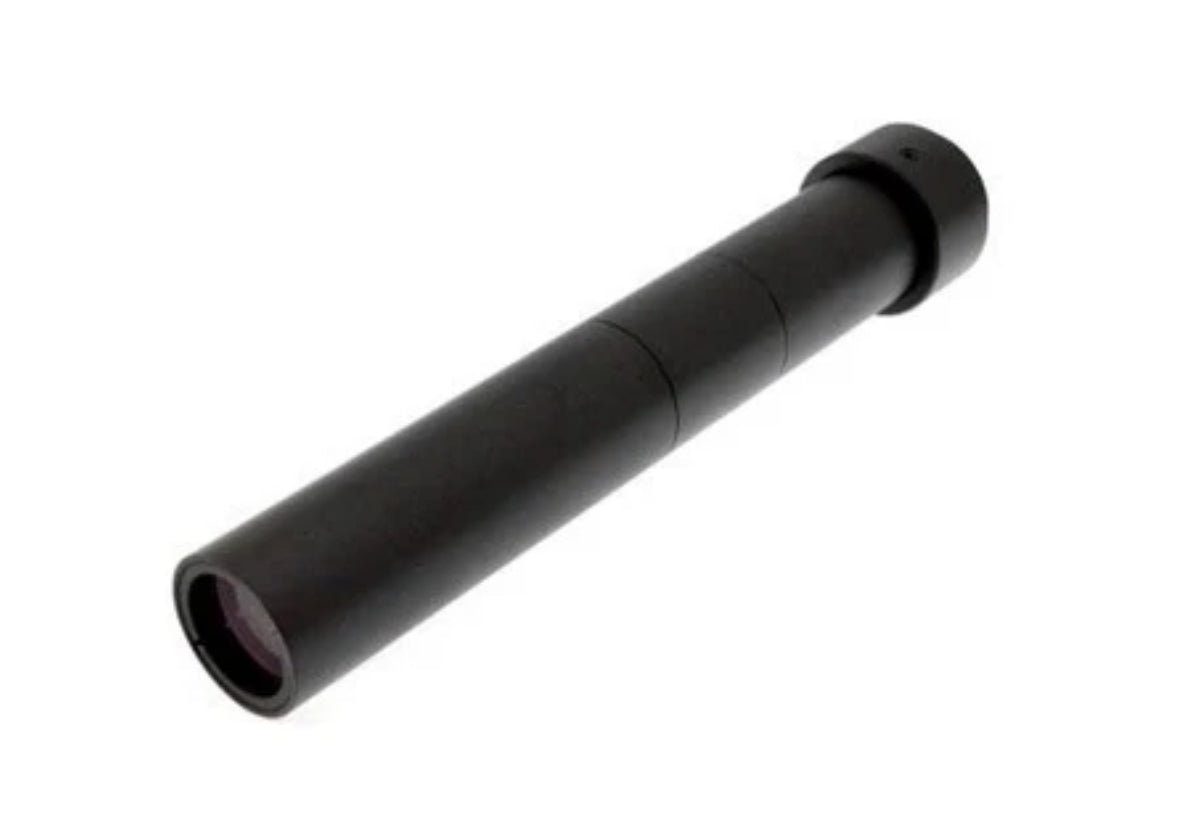

Opto Engineering RT-TV-1M-150 1.000x Very long working distance telecentric lens for detectors up to 1/2″
Regular price
$1,475.00 USD
Regular price
Sale price
$1,475.00 USD
Unit price
per
Shipping calculated at checkout.
Opto Engineering RT-TV-1M-150
Long working distance telecentric lenses for sensors up to 1/1.8” with 0.5 to 3 times magnification. To meet all our customer's needs, we have carefully selected a collection of machine vision components from experienced and qualified suppliers to complement our product range. These products will be delivered to you with the same level of competence, quality, and technical support that you have come to know and expect from Opto Engineering®.
RT-TV-1M-150 Technical Specifications:
| Product Line / Series | TCVLWD |
| Brand | Opto Engineering |
| Lens Type | Telecentric |
| IP Rating | Not Specified |
| Magnification | 1× |
| Image Circle Diameter | 8 mm |
| Image Size Dimensions | Not Specified |
| Imager Format | 1/2″ |
| Distortion Typical (%) | < 0.24 |
| Distortion Maximum (%) | Not Specified |
| Phase Adjustment | Yes |
| Working Distance | 156 mm |
| Depth Of Field | 1 mm |
| Working ƒ/N | ƒ/16.7 |
| Resolution (Pixel Size) | 11.2 μm |
| Mount | C-Mount |
| Dimensions Approximate | 155.6 x 24 x 24 mm |
| Front Diameter | 24 mm |
| Weight | 120 Grams |
| Filter Thread | No Filter Threads |
| Operating Temperature Range | 0 to 40°C |
| Storage Temperature Range | 0 to 50°C |
| Operating Relative Humidity (%) | Not Specified |
| Installation Location | Not Specified |
| Temperature Sensor | No |
| FoV @ 1/2.5″ | 5.70 x 4.28 mm |
| FoV @ 1/2″ | 6.40 x 4.80 mm |
