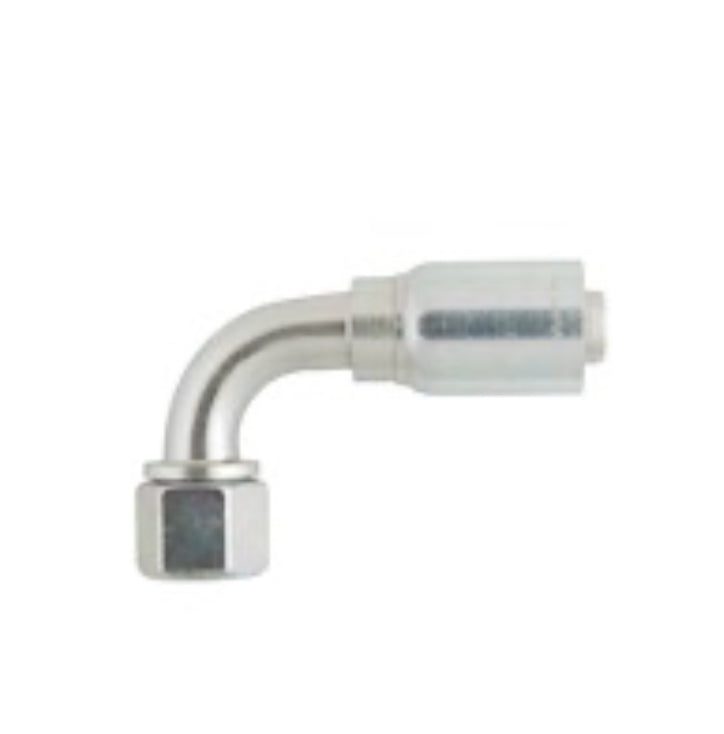

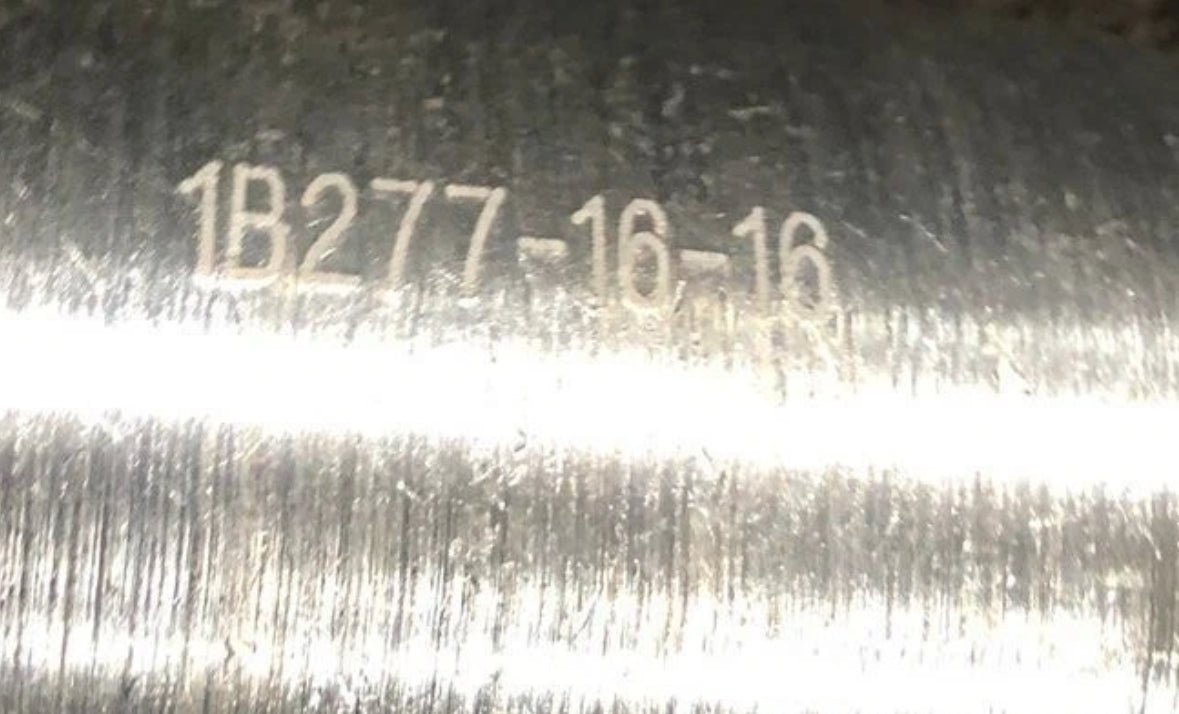

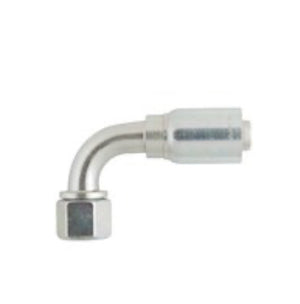

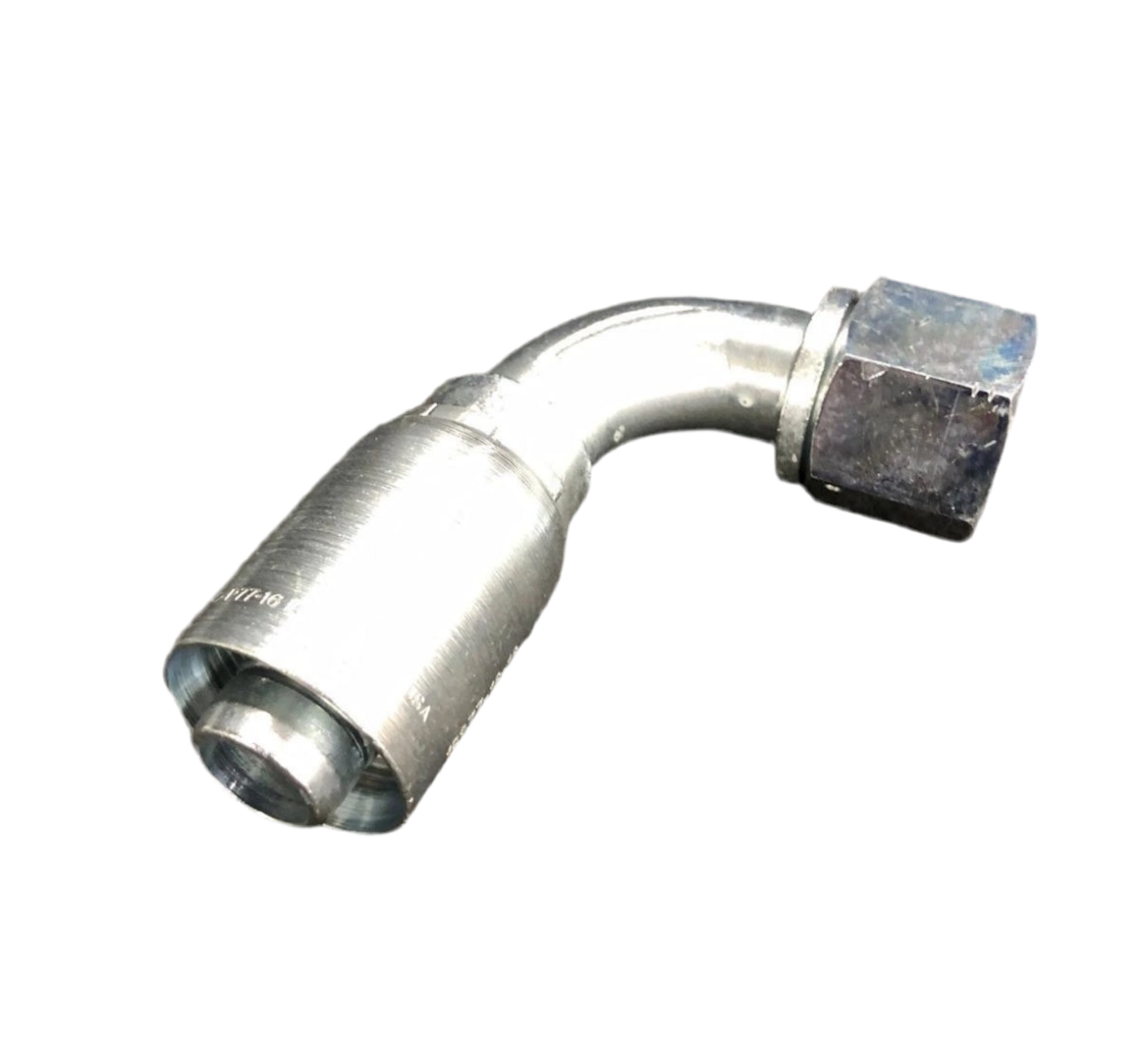

Parker 1B277-16-16 - Crimp Style Hydraulic Hose Fitting – 77 Series Fittings

Parker’s 77 Series high-pressure hydraulic hose fittings deliver high performance, quick assembly and the design flexibility of more than 500 configurations.

Hose I.D. (inch):	1"
Materials of Construction:	Steel
Connection Size:	1"-11 inch Thread, n/a
Flange Size:	n/a
Hose Inside Diameter:	1 inch, -16 (Size)
Materials of Construction:	Steel
Port Size:	1 inch
Shape:	Elbow 90° (60° Cone)
Product Style:	Female BSP Parallel Pipe - Swivel - (60° Cone)
Back-Up Hex Size:	n/a
Banjo Port Diameter:	n/a
Nut Hex Size:	41 mm
Port Connection:	1"
Product Style:	Female BSP Parallel Pipe - Swivel (60° Cone)
Shape:	Elbow 90° - (60° Cone)

California Residents: Prop-65 Warning

Crimp-style 77 Series hydraulic hose fittings from Parker Hannifin are cost-effective, permanent, bite-the-wire-style fittings for high-pressure applications. Designed for use with Parkrimp crimpers, 77 series fittings require less push-on force and are easy to assemble. Their compact, one-piece construction delivers better value, flow, and reduced heat and pressure loss, as well as reduced complexity. Compatible with a wide range of constant working pressure hoses, 77 Series fittings are engineered for efficiency, safety, and performance. When paired with Parker’s No-Skive hose, 77 Series fittings can be assembled without removing the outer hose cover. Available in multiple materials and a wide assortment of end configurations, 77 series fittings are offered in sizes from ¼ inch to 2 inches.

Markets:
• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining

Features/Benefits:
• Metric hex
• Easy push on force
• Multiple materials available, such as steel and stainless steel
• Wide range of end configurations
• One piece reduces complexity and leakage path
• No-Skive technology offers easy, efficient, and safe production processes

Applications:
• Petroleum base hydraulic fluids and lubricating oils

Compatible Hoses:
• 387 (-20 through -32 only)
• 487 (-20 through -32 only)
• 787 (-8 through -32 only)
• 797 (-8 through -32 only)
