PARKER 7321HBN4UN00N0C111P3 110/120V 5-600PSI NSMP

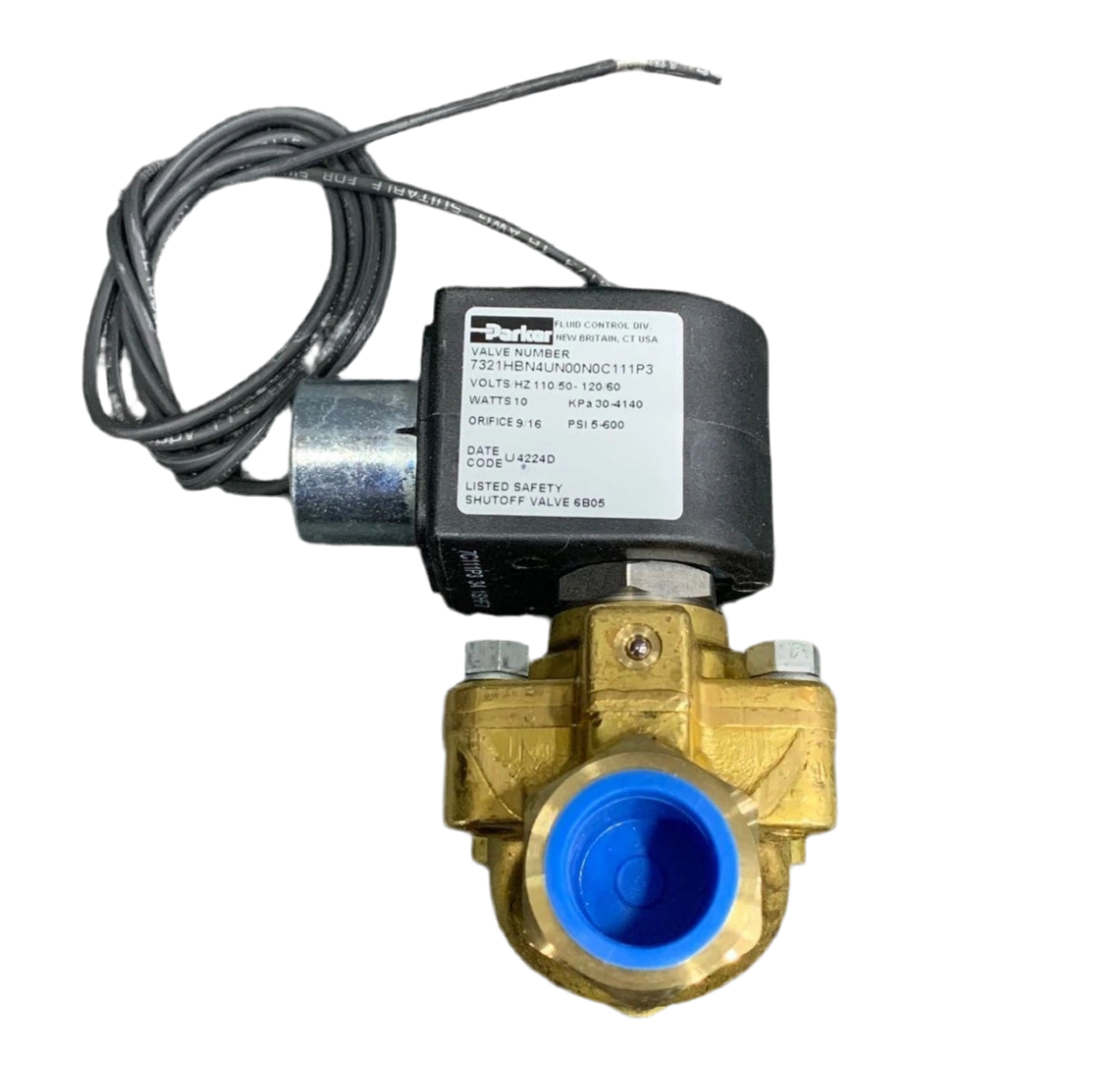

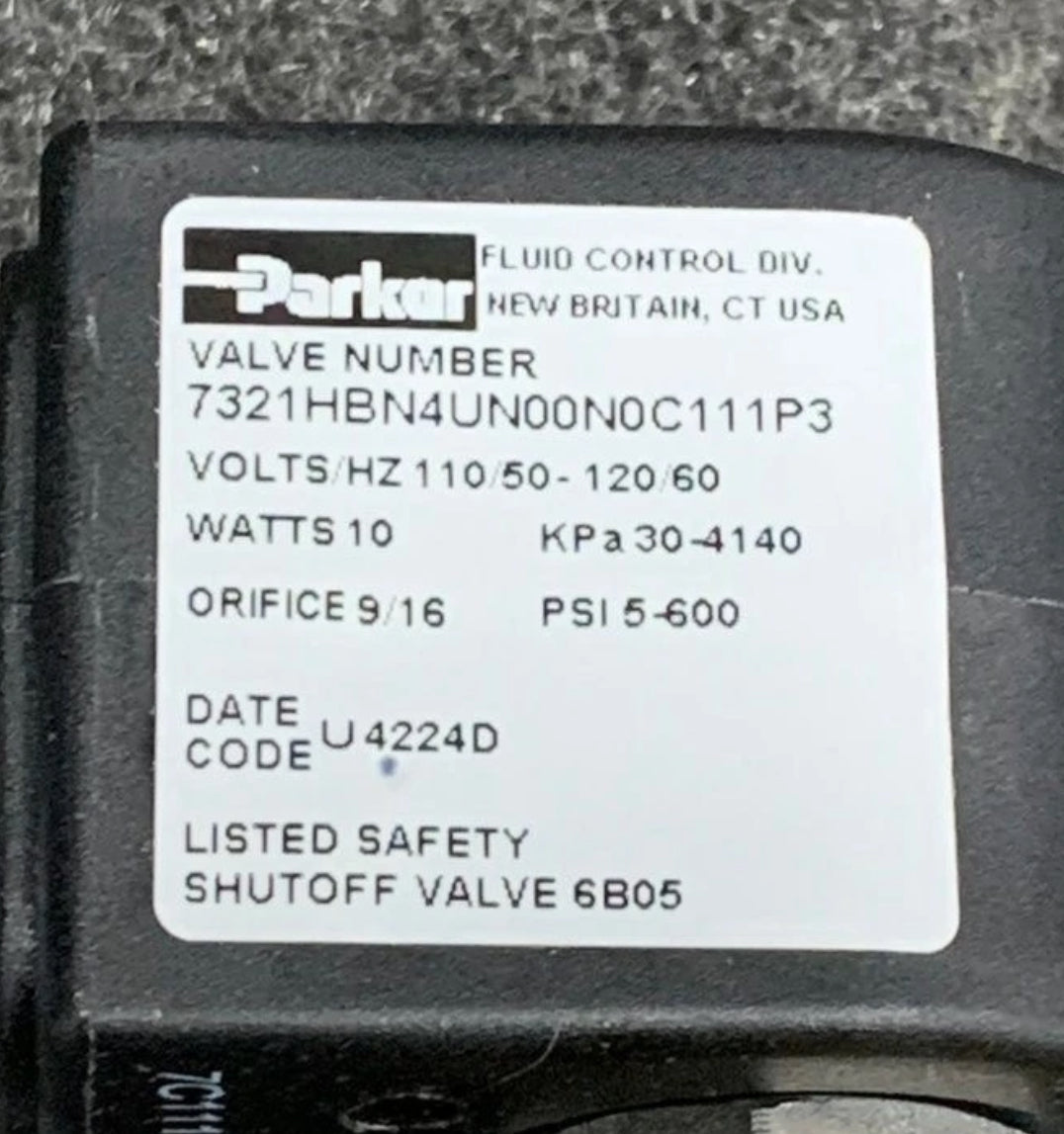

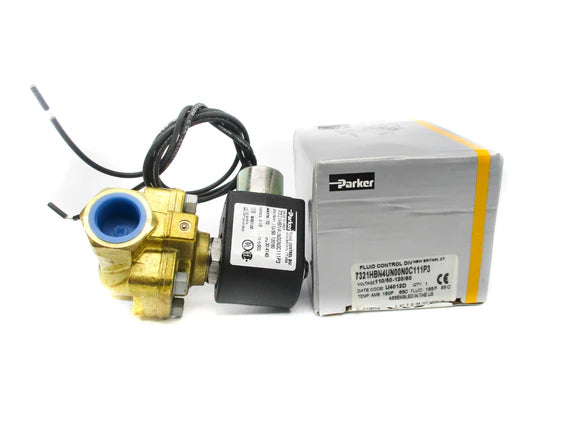

7321HBN4UN00N0C111P3 Parker Skinner 2 Way Normally Closed 1/2" NPT Pilot Operated Internal Pilot Supply Brass Solenoid Valve 110/50-120/60VAC Conduit

2-Way Direct Acting and Pilot Operated High Pressure valves are generally installed where high pressure and large flow requirements dictate the use of piston valves and/or valves with more robust seals such as PTFE and Ruby discs*. Pilot Operated valves require the minimum pressure differential specified for proper valve operation.

Installation

Pilot Operated Valves should be mounted with solenoid coils vertical and upright. Direct Acting valves can be mounted in any position. The preferred orientation is with the coil vertical and upright.

Compatible Fluids

Lubricated Air, Inert Gases, Water, Light Oil (300 SSU) and other non-compressible media. Use of non-lubricated gaseous media can affect valve life.

Coil Classification

Class F standard
Class H available

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150°F

Applications

• Blow molding
• Compressors
• Car washing equipment
• Pumps
