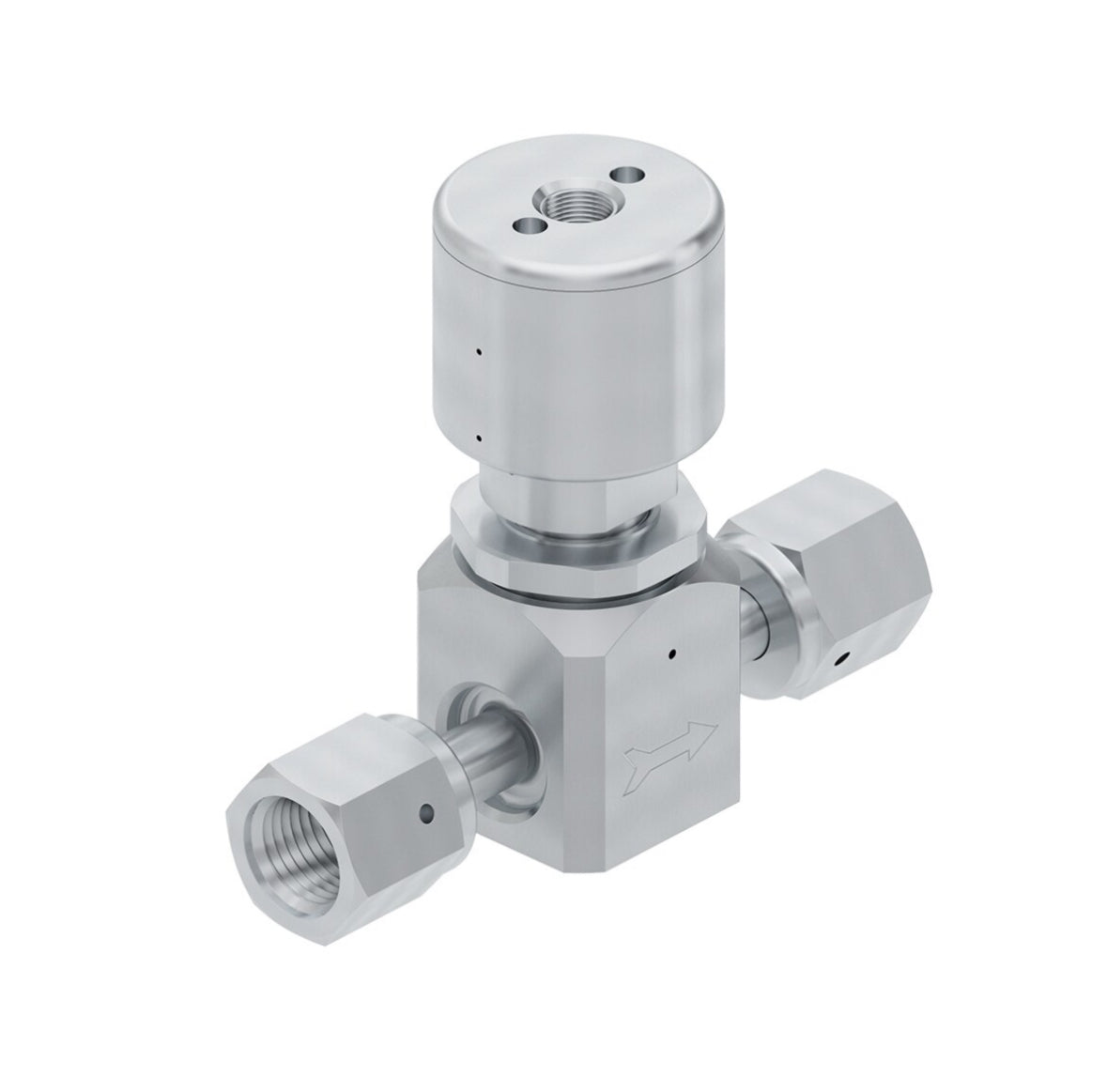

Parker Ultra-High Purity (UHP) Low Flow, Low Pressure Diaphragm Valve – 930 Series 930AOPLPNCSFSFF
Regular price
$299.00 USD
Regular price
Sale price
$299.00 USD
Unit price
per
Shipping calculated at checkout.
Technical Specifications
| Flow Coefficient: | 0.3 |
| Maximum Operating Pressure: | 125 psig |
| Actuation Type: | Air Operated, Normally Open |
| Outlet Connection: | 1/4" Face Seal, Female |
| Inlet Connection: | 1/4" Face Seal, Female |
| Body Material: | VeriClean 316L Stainless Steel |
| Diaphragm Material: | Elgiloy, equivalent |
| Seat Material: | PCTFE (std), PEEK, Vespel |
| Cap Material: | 17-4 Stainless Steel |
| Nut Material: | 316L Stainless Steel |
| Housing Material: | Anodized Aluminum |
| Proof Pressure: | 188 psig (13 barg) (AOPLP, G) 450 psig (31 barg) (AOPMP, K, L, I, M, S) |
| Burst Pressure: | 375 psig (26 barg) (AOPLP, G) 900 psig (62 barg) (AOPMP, K, L, I, M, S) |
| Flow Rate: | Cv: 0.3 (AOP), 0.22 (Lever) |
| Internal Leak Rate: | ≤ 1 x 10¯9 scc/sec He |
| External Leak Rate: | ≤ 2 x 10¯10 scc/sec He |
| Volume: | 2.64 |
| Weight: | 1.75, 0.8 |
| Switch Option: | Single Pole, Single Throw (SPST) Momentary Action, Non-Adjustable |
| Input Voltage: | 1/4 amp at 115 vac (normally closed) (AOPLPLSC, AOPMPLSC) 1/2 amp at 115 vac (normally open) (AOPLPLSO, AOPMPLSO) |
| Lead Length: | 7 |
| Electrical Connection: | 26 AWG, UL Style 1061, equal twisted pair, 1/8" strip tinned ends |
| Maximum Inlet Pressure Rating: | 125 psig (AOPLP, G) | 300 psig (AOPMP, K, L, I, M, S), 8.6 barg (AOPLP, G) | 20.7 barg (AOPMP, K, L, I, M, S) |
| Actuation Pressure: | 75 psig nominal (5 barg) |
| Bake Out Temperature: | in the open position: 121, 250°F in the open position |
| Maximum Operating Temperature: | 66, 150 |
| Minimum Operating Temperature: | -40, -40 |
