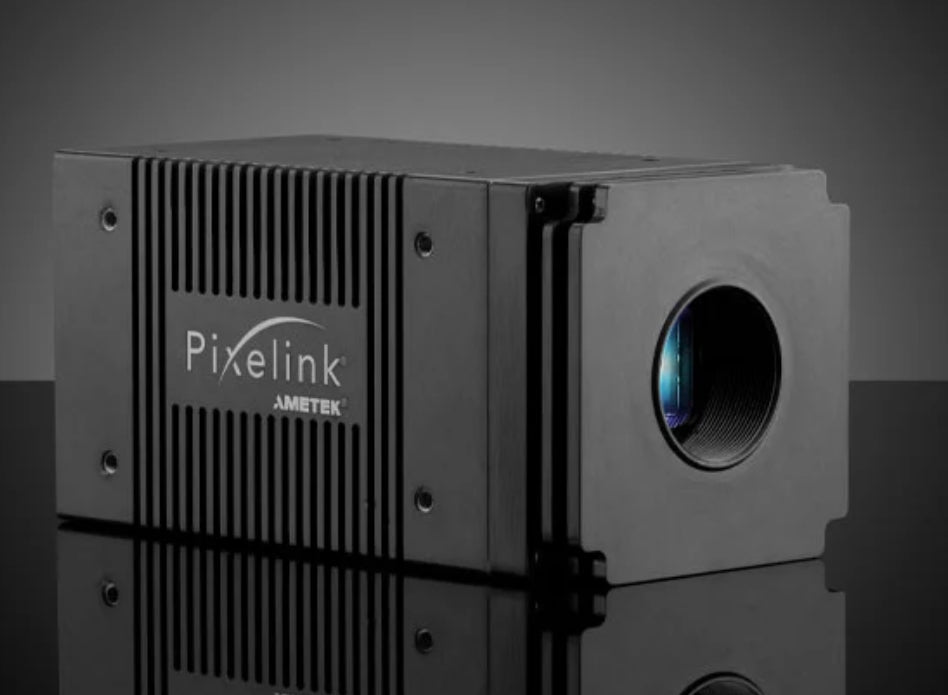

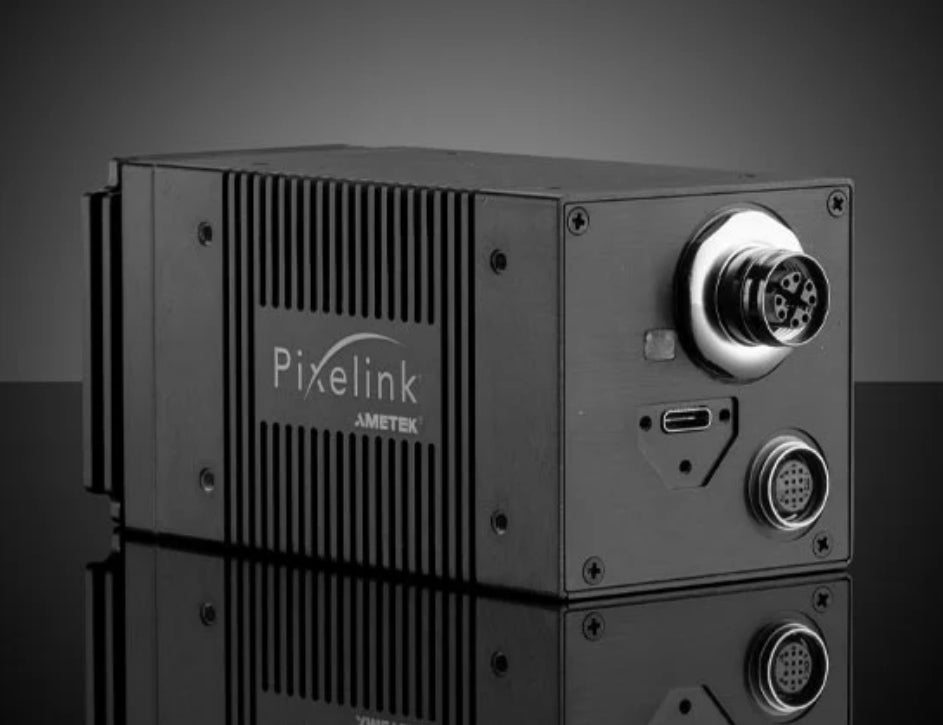

Pixelink PL-X9520MG-T 1.1" 7MP C-Mount, 10GigE PoE Monochrome Camera
Regular price
$3,999.00 USD
Regular price
Sale price
$3,999.00 USD
Unit price
per
Shipping calculated at checkout.
- 10GBASE-T (10GigE) Ethernet Interface, 10X Faster than GigE
- 7.0 to 24.0 Megapixel Sony 4th Gen Pregius S Sensors
- Fully Compatible with Pixelink Capture Software and SDK
Pixelink PL-X 10GigE Cameras, utilizing the latest 10GBASE-T Gigabit Ethernet interface, are capable of providing high quality, reliable image transfers at cable lengths of up to 100m on CAT6A. These global shutter cameras offer up to 24MP Resolution with framerates up to 154FPS via the Sony Pregius 2nd, 3rd and 4th generation sensors. Additionally, these cameras feature Power over Ethernet (PoE), Trigger over Ethernet (ToE) and IEEE1588 clock synchronization (PTP), and are fully compatible with Pixelink Capture Software and SDK. Pixelink PL-X10GigE Cameras are ideal for three-dimensional mapping, analytical research, AR/VR applications, as well as automated inspection and life science imaging.
Note: Pixelink Capture is a free, user-friendly application included with all Pixelink cameras, offering real-time image and video capture through an intuitive graphical interface. In contrast, the Pixelink SDK is a comprehensive development toolkit for Windows and Linux that enables developers to build custom applications with full camera control via C/C++, .NET, or Python. The SDK is available as a trial download, allowing users to evaluate its capabilities before purchasing a license. Links to software downloads (SDK and Capture) are available on the product pages
| Resolution | 20.00 |
|---|---|
| Sensor Type | Progressive Scan CMOS |
| Frame Rate | 52.00 |
| Camera Type | Monochrome Camera |
| Shutter Type | Global |
| Lens Mount | C-Mount |
| Dynamic Range | 72 |
| Imaging Sensor | Sony IMX531 |
| Pixel Size | 2.74 X 2.74 |
| Sensing Area | 12.4 x 12.4 |
| Image Buffer | Not Specified |
| Video Output | GigE (PoE) |
| Type | Monochrome Camera |
| Manufacturer | Pixelink |
| Mounting Threads | No Mounting Threads/Tripod Adapter |
| Camera Family | PL-X Series |
| Model Number | PL-X9520MG-T |
| Type Of Sensor | Progressive Scan CMOS |
| Type Of Shutter | Global |
| Camera Sensor Format | 1.1" |
| Resolution (megapixels) | 20.00 |
| Pixels (h X V) | 4,512 x 4,512 |
| Pixel Size, H X V (μm) | 2.74 x 2.74 |
| Sensing Area, H X V (mm) | 12.4 x 12.4 |
| Frame Rate (fps) | 52.00 |
| Pixel Depth | 8/12 bit |
| Exposure Time | Not Specified |
| Connector | GiGE, USB 3.0, Micro-C |
| Power Supply | PoE or USB |
| Power Consumption (w) | 5V (from USB Type-C connector), 48V (802.3bt PoE) |
| Gpios | 1 opto-isolated input, 2 non-isolated GPIOs |
| Synchronization | Hardware and Software Trigger |
| Dimensions (mm) | 125 x 57 x 57 |
| Weight (g) | 560.0 |
| Mount | C-Mount |
| Housing | Full |
| Interface Port Orientation | Back Panel |
| Dynamic Range (db) | 72 |
| Operating Temperature (°c) | 0°C to 50°C |
| Storage Temperature (°c) | -45°C to 85°C |
| Gpio Connector Type | M12 X-Coded (8-pin) |
| Machine Vision Standard | 10GigE Vision |
| Rohs 2015 | Compliant |
| Reach 224 | Compliant |
| Certificate Of Conformance | View |
