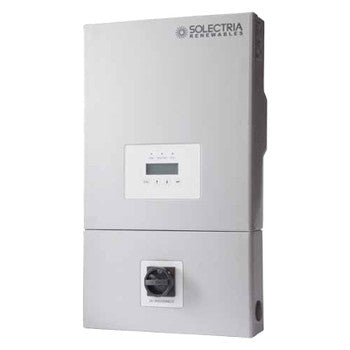

Solectria PVI-7600TL 7.6kW Grid-Tied Inverter

Solectria PVI-7600TL 7.6kW Grid-Tied Inverter
$1,699.00 USD
$1,699.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:

Availability : Low stock: 1 left
View Product details
product-img
Solectria PVI-7600TL 7.6kW Grid-Tied Inverter
$1,699.00 USD
$1,699.00 USD
Shipping calculated at checkout.
SOLECTRIA 7.6KW GRID-TIED INVERTER - PVI-7600TL

Yaskawa Solectria, PVI 7600TL Grid tied inverter, 1-Ph, 7600W, 208/240VAC, 60Hz, 600VDC, DC/AC Discon, 2x15A Dual Fused Input, 2 MPPT, 10 Yr Warr, Ungrounded, RS485, Arc-Fault Protection, PVI-7600TL

Solectria Renewables’ PVI 3800TL, 5200TL, 6600TL and 7600TL are compact, transformerless, single-phase inverters with the highest peak and CEC efficiencies in the industry. These inverters come standard with an integrated DC disconnect, optional DC arc-fault detection and interrupt, 1 or 2 MPP tracker(s), and a user-interactive LCD and keypad. Its small and lightweight design make for quick and easy installation and maintenance. These inverters include an enhanced DSP control, comprehensive protection functions, and advanced thermal design enabling highest reliability and uptime. They also come with a standard 10 year warranty.

Features

  • Highlights - 600 VDC. Highest industry peak and CEC efficiency. Lightweight, compact design - smallest in the industry. Quick and easy installation. Wide operating voltage range. DC disconnect. Passive cooling.



General Information
Manufacturer: Solectria
Product Line:
 PVI
Model ID:
 PVI-7600TL
Certifications and Safety Ratings: etl.jpg csa.jpg



Mechanical Data

Dimensions:
 26.80 x 15.80 x 8.50inches
Weight: 65.00 lbs
DC Disconnect: Standard, Fully-Integrated
Enclosure Rating: Type 4
Enclosure Finish: Aluminum
Ambient Temperature Range: -25°C to +50°C



Electrical Data

Maximum Open Circuit Voltage: 600 VDC
Operating Voltage Range: 120-550 VDC
MPPT Input Voltage Range: 200-500 VDC
MPP Trackers: 2
Maximum Operating Input Current: 20 Amps per MPP Tracker
Nominal Output Voltage: 208 or 240 VAC, 1-Ph
AC Voltage Range: -12%/+10%
Continuous Output Power:
 6600 Watts @208VAC; 7600 Watts @240VAC
Continuous Output Current: 31.7 Amps @208VAC; 31.7 Amps @240VAC
Maximum Back-feed Current: 0 Amps
Nominal Output Frequency: 60 Hz
Output Frequency Range: 59.3-60.5 Hz
Power Factor: Unity > 0.99
Total Harmonic Distortion (THD): <3%
Peak Efficiency/CEC Efficiency: 98.3%/97.5%
Tare Loss: <1 Watts
