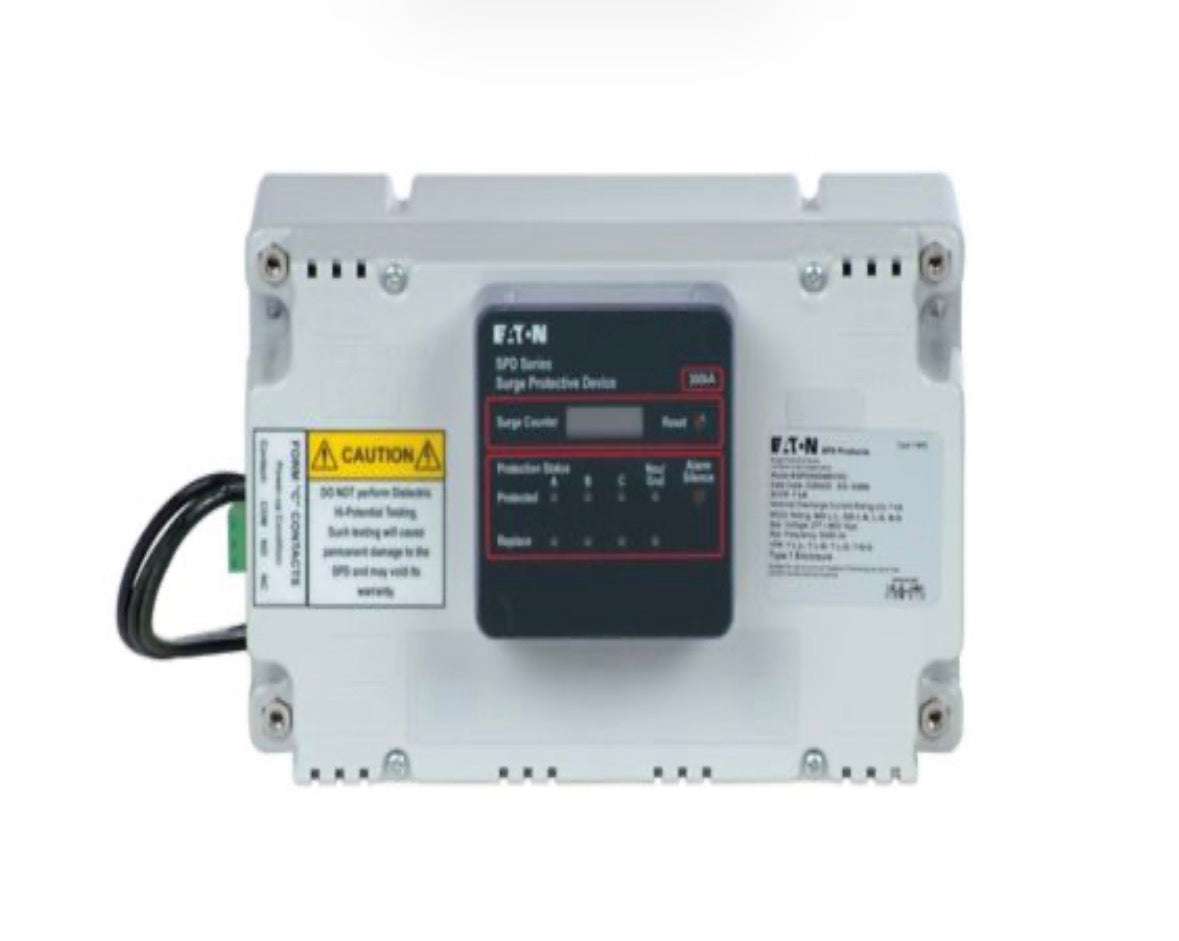

SPD250480D3C | Eaton SPD series surge protection device
Regular price
$5,999.00 USD
Regular price
Sale price
$5,999.00 USD
Unit price
per
Shipping calculated at checkout.
Surge Protection Device, SPD series, For switchboard, busways and panel boards (PRL1a, 2a, 3a, 3E, 4), 250 kAIC, 480V delta (3W+G), Standard feature package and surge counter, Internal integrated mount, 640 L-G, 640 L-L operating voltage
GENERAL SPECIFICATIONS
| Product Name |
Eaton SPD series surge protection device
|
| Catalog Number |
SPD250480D3C
|
| UPC |
786685323183
|
| Product Length/Depth |
9.5 in
|
| Product Height |
3.45 in
|
| Product Width |
5.4 in
|
| Product Weight |
7 lb
|
| Warranty |
15 year
|
| Certifications |
UL 1449
UL Listed |
| Product Type |
Surge protection device
|
PRODUCT SPECIFICATIONS
| Accessories |
Standard feature package and surge counter
|
| Frequency rating |
50/60 Hz
|
| Interrupt rating |
200 kAIC
|
| Nominal Discharge Current |
20 kA
|
| Operating voltage |
640 L-G, 640 L-L
|
| Used with |
Switchboard, busways and panelboards (PRL1a, 2a, 3a, 3e, 4)
|
| Voltage rating |
480 delta (3W+G)
|
| Surge current |
250 kA per phase
|
| Short-circuit rating |
200 kA
|
| Operating temperature |
-40 to 50 °C
|
| Mounting Method |
Internal integrated
|
| Type |
SPD
|
| Special features |
Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
|
