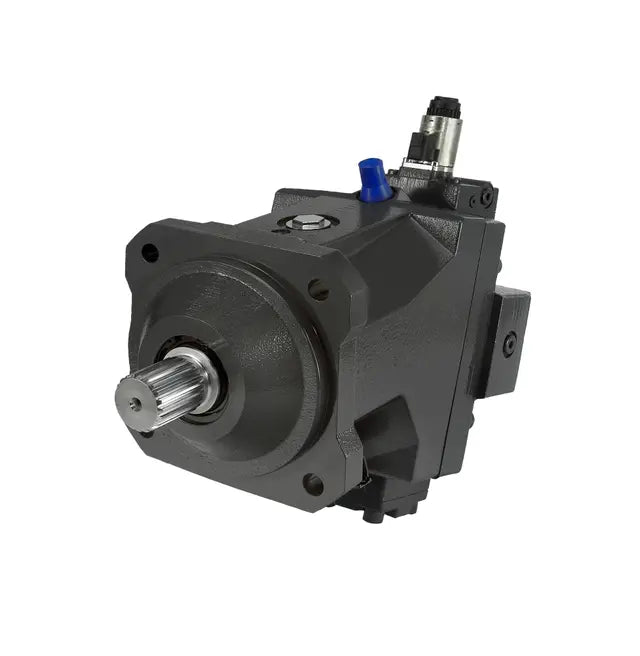

83029207 DANFOSS | H1-B-160-A-A-TA-DA-N-B-TA-VN-EN-N-A-20-NN-100-Z-29-NNN MOTOR-VAR-DISPL H1B160

MOTOR-VAR-DISPL H1B160

83029207

Model code: H1-B-160-A-A-TA-DA-N-B-TA-VN-EN-N-A-20-NN-100-Z-29-NNN

Control: PCOR, default min

Endcap type & ports: 2pos,AP,Metric,Max Side

Flange & housing: ISO3019/1(SAE),no sensor

Frame size: 160

L: 20 l/min,16 bar, no adjust

Loop flushing relief valve: 20 l/min,16 bar, no adjust

Loop flushing shuttle system: 6.5 bar

Maximum displacement: 100% for E,T & P controls

Minimum displacement: Minimum 100

Model Code: H1-B-160-A-A-TA-DA-N-B-TA-VN-EN-N-A-20-NN-100-Z-29-NNN

Orifices: 0.8 mm Orifices

Paint and nametag: Black, Danfoss Nametag

Pcor bpd: w/ PCOR, w/o BPD, P* & T*

Pcor setting: PCOR setting 290 bar

Port: inch

Product Type: Motor, Bent-axis variable

Proposition 65: Cancer and Reproductive Harm

Pth full path: DPS>High Power Closed Circuit>C74>C74 17231

Revision: A

Sensor: No Speed sensor

Series: H1-Series

Shaft & speed ring: 13T 8/16, No speed ring

Special hardw feature: Standard 2pos

Threshold setting: Not applicable
