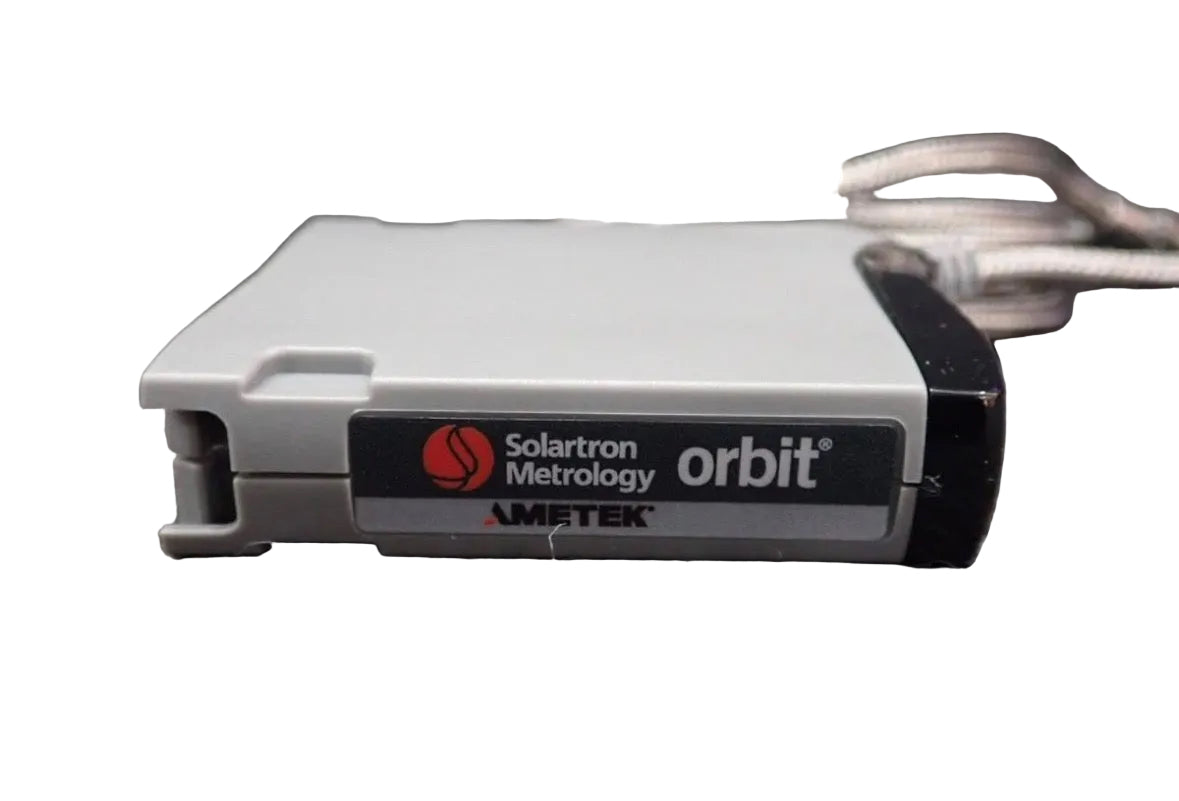

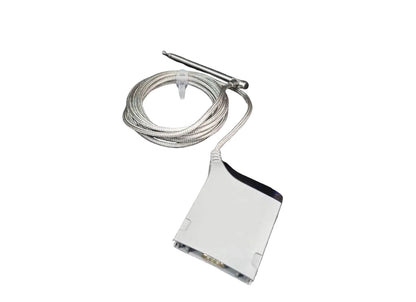

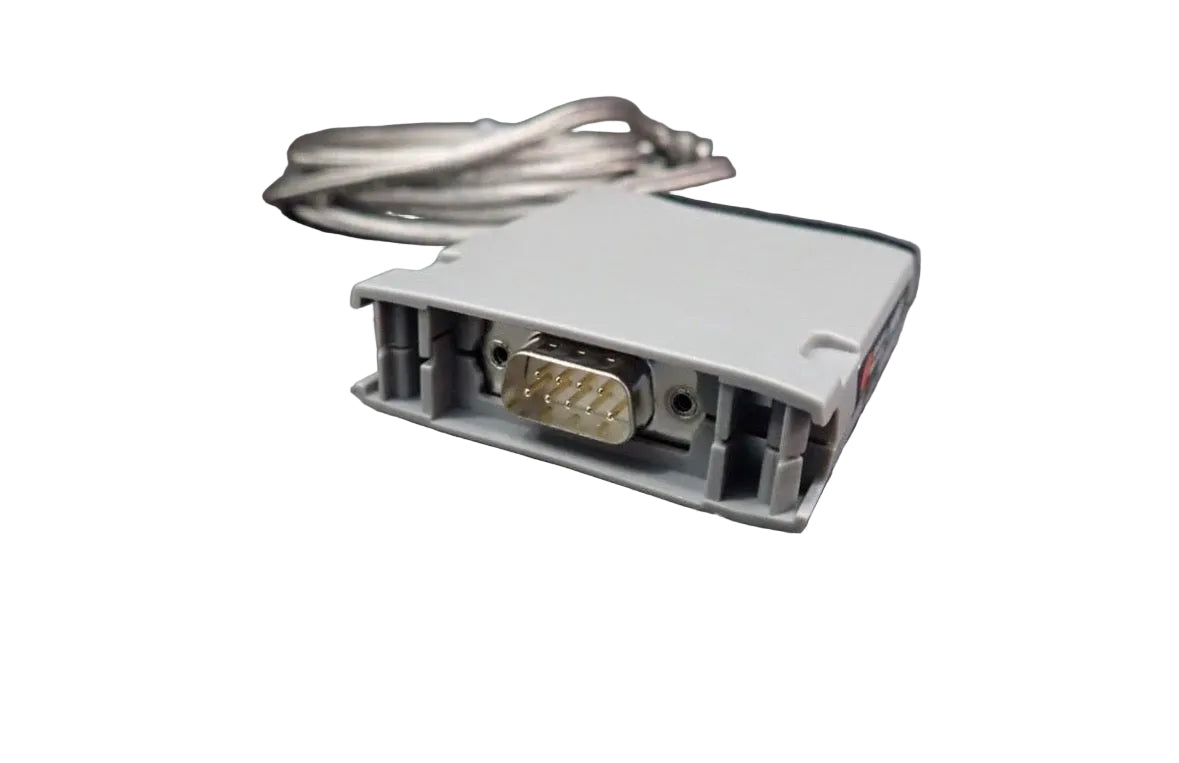

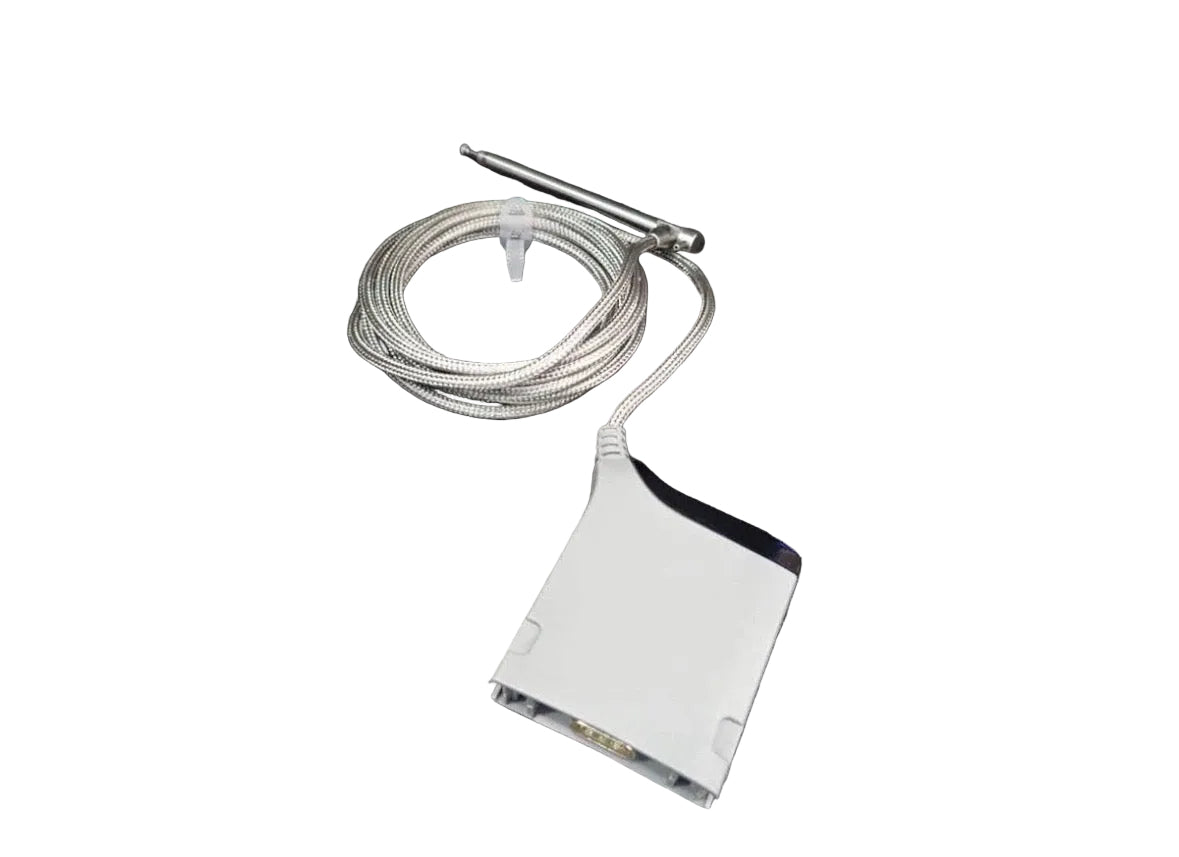

971218-3 Solartron Metrology Gage Probe-Digital DTR/10/P
Description
Status: Standard | Data Sheet:
| RoHS Compliance:
| RoHS Compliance:
Feather Touch Pneumatic Probes (DT/P)
Feather Touch Probes are designed specifically for applications where low tip forces are critical. Air is vented through the shroud at the front of the probe during actuation, which in turn cleans the bearing. With no gaiter to protect the shaft from contamination they are unsuitable for use in wet or oily conditions
BUY NOW AT CDI!!
|
Part Number:
971218-3
|
|
Model Number:
DT/10/P
|
|
Measuring Range:
10 mm
|
|
Actuation:
Pneumatic
|
|
Tip Material:
T/C
|
|
Cable Outlet:
Right Angle
|
|
Cable Length:
2 m
|
|
Tip Force:
11 g
|
|
Cable Type:
Metal Braided
|
|
Body Diameter:
8 mm
|
|
Tip Thread:
M2.5
|
|
Family:
Orbit 3
|
|
Measuring Range:
0.393 in
|
Vendor: NRA PARTS
