ELTEK 241122.105 241122105
Description
ELTEK 241122.105

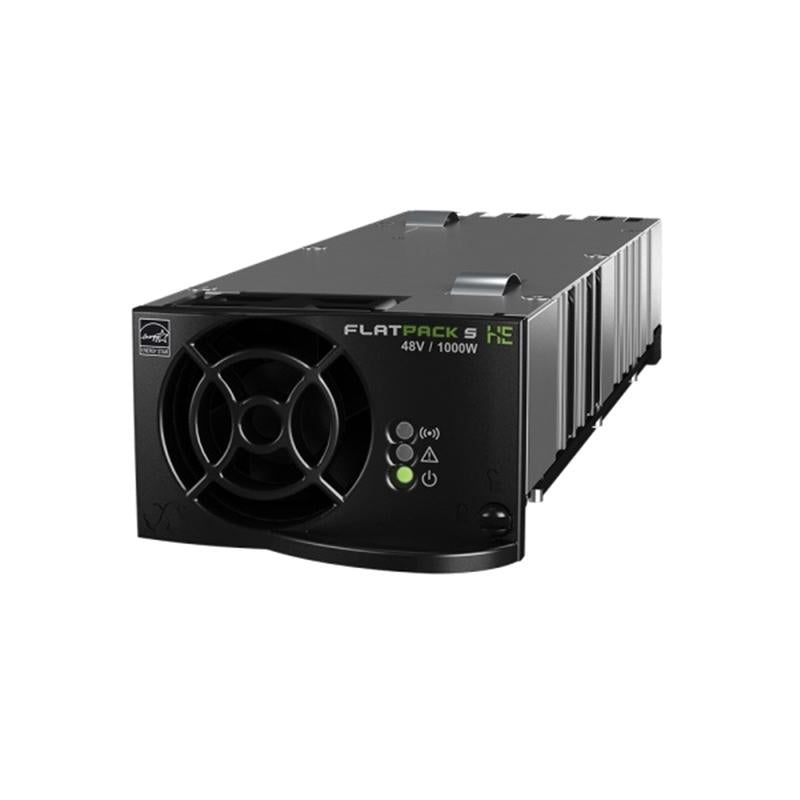

ELTEK 241122.105 Flatpack S Rectifier, 85 to 300 VAC/85 to 250 VDC Input, 43.5 to 57.6 VDC Output, 1000 W Output
- Manufacturer: Delta Products
- Brand Name: ELTEK
- P&T Item #: 241122105
- Mfg Item #: 241122.105
- Min. Order Qty: 1
- Qty. Interval: 1
The flatpack S rectifiers incorporate telecom specifications, high efficiency, O-ring protection on output and high power in a small, 217 mm deep box. Used in the 1U high, 2 or 3 rectifier positions power rack with smartpack S controller and battery and load distributions, the flatpack S rectifiers cover 2 to 5.4kW applications using a minimum of space, less than 6L and low heat dissipation.
ELTEK Flatpack S Rectifier, 85 to 300 VAC/85 to 250 VDC Input, 43.5 to 57.6 VDC Output, 20.9 A Maximum Current, 15 to 18.5 Hz, 45 to 66 Hz, 1000 W Output, Power Factor: >0.99, 0.955 % Efficiency, Fan Cooling, -40 to 85 deg C Operating, IP20 IP Rating, 2.83 in Width, 1.63 in Height, 8.54 in D
| Cooling Type | : | Fan |
| Depth | : | 8.54 in |
| Efficiency | : | 0.955 % |
| Frequency Rating | : | 15 to 18.5 Hz, 45 to 66 Hz |
| Height | : | 1.63 in |
| IP Rating | : | IP20 |
| Input Voltage | : | 85 to 300 VAC/85 to 250 VDC |
| Maximum Current | : | 20.9 A |
| Operating Temperature | : | -40 to 85 deg C |
| Output Power | : | 1000 W |
| Output Voltage | : | 43.5 to 57.6 VDC |
| Power Factor | : | >0.99 |
| Width | : | 2.83 in |
Vendor: Eltek
