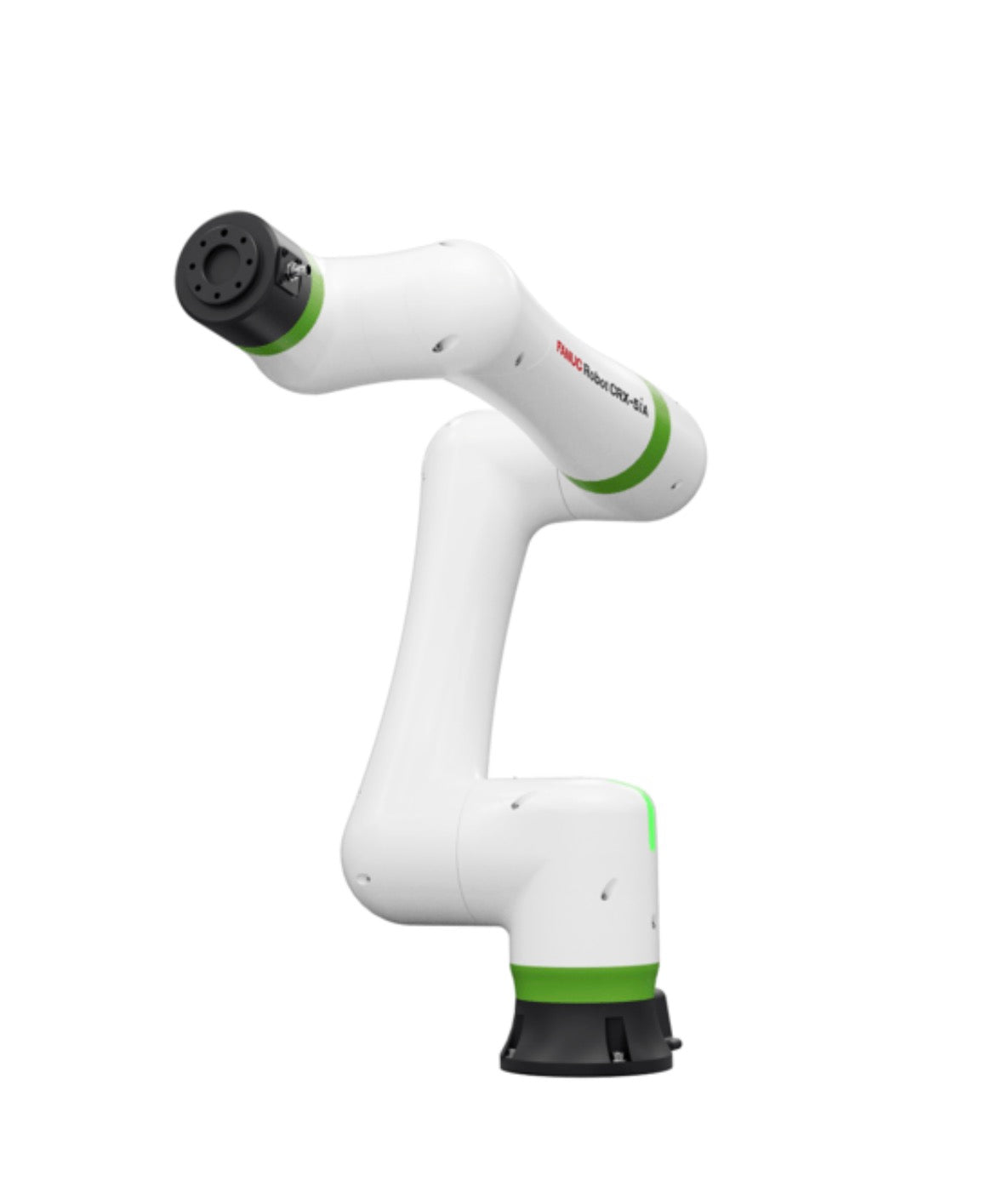

The CRX-5iA is the smallest cobot by Fanuc in their CRX series with a payload of 5kg and reach 994mm. Its lightweight and compact design makes it a good fit for automating manufacturing tasks that don’t require heavy lifting and are constrained with small work areas, while ensuring a safe collaboration between humans and machines.
| General Specifications |
|
| Part Number |
PR-FA-001-0600 |
| Unit Price |
$47,528.64 USD |
| Weight |
45 kg |
| Dimensions (L x W x H) |
1168 x 1118 x 610 mm |
| Associated Fasteners |
4 x HW-FN-003-1022 |
|
|
| Performance |
|
| Reach |
994 mm |
| Repeatability |
0.03 mm |
| Max Payload |
5 kg |
| Robot Weight |
25 kg |
| Degrees of Freedom |
6 |
| Typical Average Power Consumption |
300 W |
|
|
| Movement |
|
| J1 Movement Range |
400 degrees |
| J2 Movement Range |
360 degrees |
| J3 Movement Range |
635 degrees |
| J4 Movement Range |
380 degrees |
| J5 Movement Range |
360 degrees |
| J6 Movement Range |
450 degrees |
| Typical Linear Speed |
2000 mm/s |
|
|
| Features |
|
| Robot Certified Standards |
EN ISO 10218-1, EN 60204-1, EN/ISO 13849-1:2015, UL 1740, CAN/CSA Z434, CSA C22.2 No.73 |
| Robot IP Rating |
67 |
| Warranty |
12 Months |
|
|
| Controller |
|
| Controller Power Source |
100-240VAC, 50/60Hz |
| Controller Weight |
19 kg |
| Controller Dimensions |
410 mm x 277 mm x 370 mm |
| Controller Digital ports |
12 in, 12 out |
| Robot to controller cable length |
