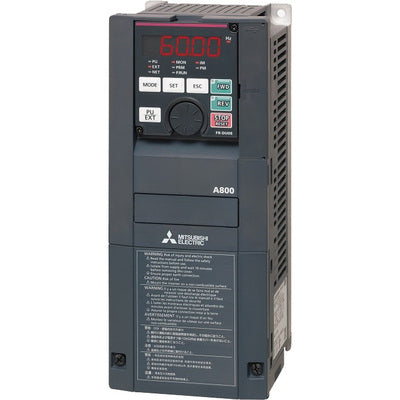

FR-A840-37K-1 VSD/VFD - Mitsubishi - FR-A800 series - 3-phase input - 71A / 37kW / 50HP

Mitsubishi Electric

Variable Speed/Frequency Drive (VSD/VFD) / Inverter

Industrial automation > Drive products > Inverter systems > VFDs > FREQROL FR-A series

FREQROL FR-A800 series

(Supply input) 50/60 Hz
(output) 0.2-590 Hz

Variable Speed/Frequency Drive (VSD/VFD) / Inverter
Soft-PWM control
High carrier frequency PWM control
Selectable among V/F control
Advanced magnetic flux vector control
Real sensorless vector control
Optimum excitation control
PM sensorless vector control
Maximum/minimum frequency settings
Multi-speed operation
Acceleration/deceleration pattern
Thermal protection
DC injection braking
Starting frequency
JOG operation
Output stop (MRS)
Stall prevention
Regeneration avoidance
Increased magnetic excitation deceleration
Frequency jump
Rotation display
Automatic restart after instantaneous power failure
Electronic bypass sequence
Remote setting
Automatic acceleration/deceleration
Retry function
Carrier frequency selection
Fast-response current limit
Forward/reverse rotation prevention
Operation mode selection
Slip compensation
Droop control
Load torque high-speed frequency control
Speed smoothing control
Traverse
Auto tuning
Applied motor selection
Gain tuning
RS-485 communication
PID control
PID pre-charge function
Easy dancer control
Cooling fan operation selection
Stop selection (deceleration stop / coasting)
Power-failure deceleration stop function
Stop-on-contact control
PLC function
Life diagnosis
Maintenance timer
Current average monitor
Multiple rating
Speed control
Torque control
Position control
Pre-excitation
Torque limit
Test run
24V power supply input for control circuit
Safety stop function
Anti-sway control
DC feeding

FM term. (PTO output)
3-phase (3P) 400V class
Forced air cooling

380Vac-500Vac (400Vac / 415Vac / 480Vac nom.)

3-phase/3P

71A (ND Normal duty)
93A (SLD Super light duty)
85A (LD Light duty)
57A (HD Heavy duty)
150% In for 60s / 200% In for 3s overload current rating (inverse-time characteristics; Normal duty; 50°C ambient air temperature)
110% In for 60s / 120% In for 3s overload current rating (inverse-time characteristics; Super light duty; 40°C ambient air temperature)
120% In for 60s / 150% In for 3s overload current rating (inverse-time characteristics; Light duty; 50°C ambient air temperature)
200% In for 60s / 250% In for 3s overload current rating (inverse-time characteristics; Heavy duty; 50°C ambient air temperature)

37kW (ND Normal duty)
45kW (SLD Super light duty)
45kW (LD Light duty)
30kW (HD Heavy duty)

50HP (ND Normal duty)
60HP (SLD Super light duty)
60HP (LD Light duty)
40HP (HD Heavy duty)

Overcurrent trip during acceleration
Overcurrent trip during constant speed
Overcurrent trip during deceleration or stop
Regenerative overvoltage trip during acceleration
Regenerative overvoltage trip during constant speed
Regenerative overvoltage trip during deceleration or stop
Inverter overload trip
Motor overload trip
Heatsink overheat
Stall prevention stop
Upper limit fault detection
Lower limit fault detection
Output side earth (ground) fault overcurrent
Output short circuit
Output phase loss
Option fault
Communication option fault
Parameter storage device fault (control board)
PU disconnection
CPU fault
Operation panel power supply short circuit/RS-485 terminals power supply short circuit
24Vdc power fault
Communication fault
Analog input fault
USB communication fault
Safety circuit fault
Internal circuit fault
Not available in initial status (Loss of synchronism detection
External thermal relay operation
PTC thermistor operation
Retry count excess
Abnormal output current detection
Overspeed occurrence
Brake sequence fault
4mA input fault
Pre-charge fault
PID signal fault
Opposite rotation deceleration fault)
Brake transistor alarm detection
Instantaneous power failure
Undervoltage
Input phase loss
Inrush current limit circuit fault

Modbus RTU
RS-485

1 x digital input (source/sink) (STF)
1 x digital input (source/sink) (STR)
1 x digital input (source/sink) (STOP)
1 x digital input (source/sink) (RH)
1 x digital input (source/sink) (RM)
1 x digital input (source/sink) (RL)
1 x digital input (source/sink) (JOG)
1 x digital input (source/sink) (RT)
1 x digital input (source/sink) (MRS)
1 x digital input (source/sink) (RES)
1 x digital input (source/sink) (AU)
1 x digital input (source/sink) (CS)
1 x digital input (SS1 safe stop channel 1)
1 x digital input (SS1 safe stop channel 2)

1 x digital output (SPDT Single Pole Double Throw contact A1/B1/C1) (fault output)
1 x digital output (SPDT Single Pole Double Throw contact A2/B2/C2) (programmable)
1 x digital output (sink/source open collector transistor) (RUN; programmable)
1 x digital output (sink/source open collector transistor) (SU; programmable)
1 x digital output (sink/source open collector transistor) (IPF; programmable)
1 x digital output (sink/source open collector transistor) (OL; programmable)
1 x digital output (sink/source open collector transistor) (FU; programmable)
1 x digital output (programmable) (SO - Safety Monitor Output)
1 x digital output (PTO Pulse Train Output; FA term.) (Frequency meter indicator)

1 x analog input (0-5Vdc / 0-10Vdc / 0-20mA)
1 x analog input (-5...+5Vdc / -10...+10Vdc)
1 x analog input (0-5Vdc / 0-10Vdc / 4-20mA)

1 x analog output (-10...+10Vdc; 8-bit) (signal output)

IP00

-10...+50 °C

54kVA (ND Normal duty)
71kVA (SLD Super light duty)
65kVA (LD Light duty)
43kVA (HD Heavy duty)

FR-A840-37K-1

Commercialized

FRA84037K1

ISO13849-1 Cat.3
IEC62061
IEC61800-5-2
IEC61508
UL
cUL
CE
KC (South Korea) Radio Waves Act
EAC
RoHS
SIL3
PLe

Transfer
Lift
Food Packaging
Machine tool
Press
Printing
Winding/unwinding

Features

Leading drive performance
- The enhanced Real sensorless vector control and vector control achieves improved speed response and high-speed operation.
- The PM motor auto tuning function enables operation of other manufacturers' permanent magnet (PM) motors.

Security & safety
- Controls with safety functions can be easily performed.
(Safety stop function)
- 24 VDC control power input is equipped as standard.
The parameter setting and communication operation can be done without turning ON the main power.
- The operating status immediately before the protective function is activated can be stored with the trace function‚ facilitating the trouble analysis at a separate location by using a USB memory device and the inverter setup software (FR Configurator2).

Easy setup & easy to use
- A USB host connecter (A type) is equipped.
Parameters can be copied to commercial USB memory devices.
- Highly reliable and easily wired spring clamp terminals have been adopted for control circuit terminals.
- Parameter setting mode can be changed to the group parameter mode‚ which provides intuitive and simple parameter settings.
(The conventional parameter setting mode is selected by default.)

Eco-friendly factories
- With Optimum excitation control‚ the excitation current is constantly adjusted to drive the motor in the most efficient method which leads to energy saving.
- The 315K or higher models are inverter-converter separated types‚ which are suitable for power regeneration.
Select the FR-CC2 converter unit according to the connected motor capacity (refer to page 20).

System support
- Rated current and four different overload capacity ratings (SLD rating‚ LD rating‚ ND rating‚ and HD rating) can be selected with parameters.
(Multiple rating)
- Parameters and setting frequency can be changed at the program‚ and the inverter control based on the machine specifications is possible by the PLC function.

Environmental adaptability
- A built-in noise filter (EMC filter)‚ the newly developed drive technology‚ and the power supply technology minimize the EMI emitted from inverters.
- For the 400V class‚ compliance with various countries ship classifications allows use on ship equipment.
(For details of the certified models‚ refer to Mitsubishi Electric FA Global Website (www.MitsubishiElectric.co.jp/fa).)
