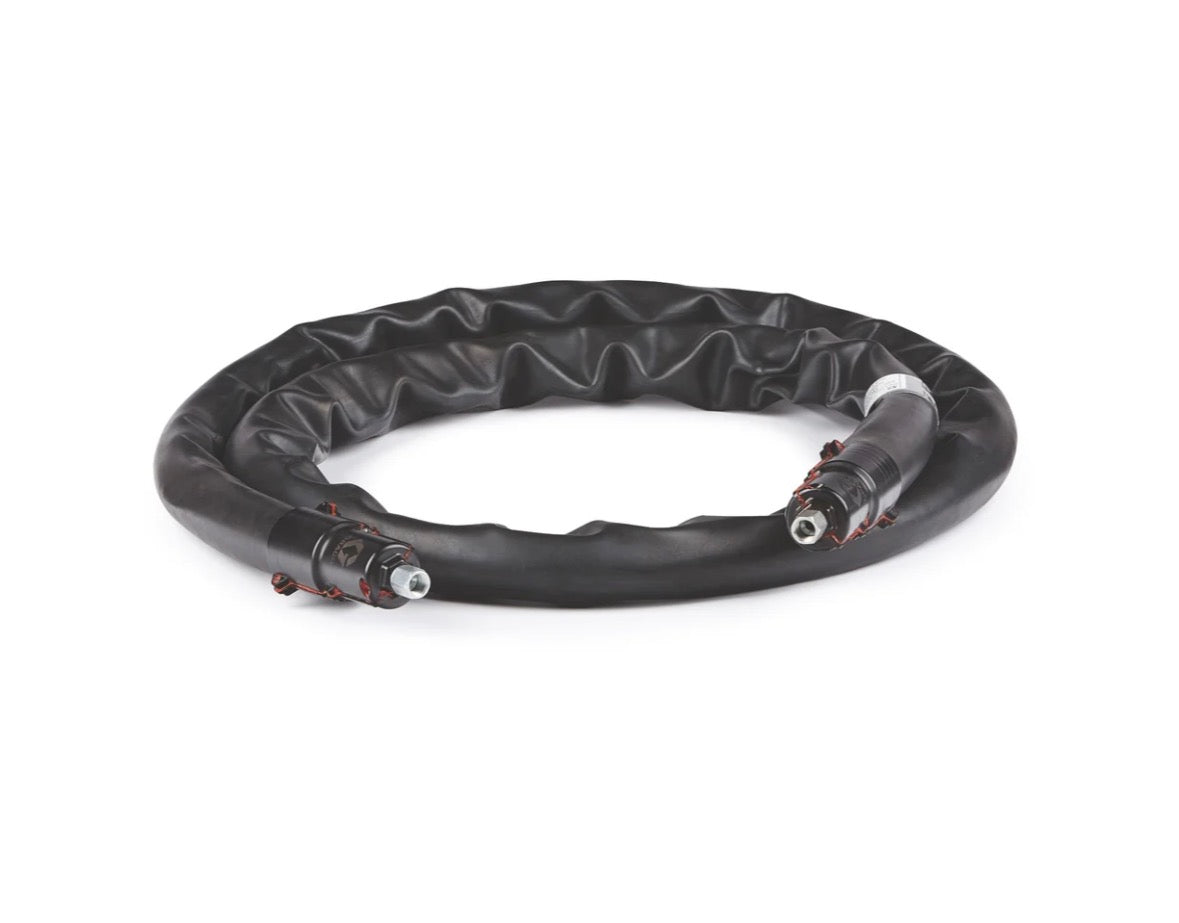

Graco 24U765 Water-Wash InvisiPac Heated Hot Melt Hose, No. 6 Core, 6 ft

Graco 24U765 InvisiPac Water-Wash Heated Hose – 6 ft Hot Melt Adhesive Hose

Designed for wash-down production environments, the Graco 24U765 InvisiPac water-wash heated hose supports reliable adhesive transfer while allowing routine equipment cleaning. This 6 ft water-wash hot melt hose is built for use with Graco InvisiPac tankless hot melt systems, maintaining consistent adhesive temperature between the melter and dispensing valve. Its IPX6-rated construction helps protect the hose during high-pressure washdown, while the PTFE-lined core and stainless steel couplings ensure dependable adhesive flow in demanding packaging and industrial applications.

Key Wash-Down Features of the Graco 24U765 InvisiPac Heated Hose

• IPX6 Rated for Wash-Down Environments: The Graco 24U765 water-wash heated hose is designed to withstand high-pressure equipment cleaning, allowing safe washdown without removing the hose from the system.
• 6 ft Hose Length for Flexible Routing: This hose length provides additional reach between the InvisiPac melter and dispensing valve while maintaining efficient adhesive transfer.
• Designed for Graco InvisiPac Systems: Engineered specifically for Graco InvisiPac tankless hot melt systems, ensuring proper heating control and system compatibility.
• PTFE-Lined Core with Stainless Steel Couplings:The No. 6 PTFE core supports smooth adhesive flow and high temperature resistance, while stainless steel fittings provide durability in industrial environments.
• Heated Adhesive Delivery: Integrated heating maintains consistent hot melt adhesive temperature during transfer from the melter to the applicator.

Specifications

• Part Number: 24U765
• Hose Type: Water-Wash InvisiPac Heated Hose
• Hose Core Size: No. 6 Core (0.308 in ID)
• Hose Length: 6 ft (1.8 m)
• Swivel Fitting: 0.31 ID (9/16-18 JIC(f))
• Max Working Pressure: 1500 psi (103 bar, 10 MPa)
• Max Temperature: 400°F (204°C)
• Voltage: 230 VAC, 50/60 Hz
• Power Consumption: 60 Watts per Foot
• Wetted Parts: PTFE Core, Stainless Steel Couplings
• Minimum Bend Radius: 8 in (203 mm)
• Certifications: IPX6 Rated
