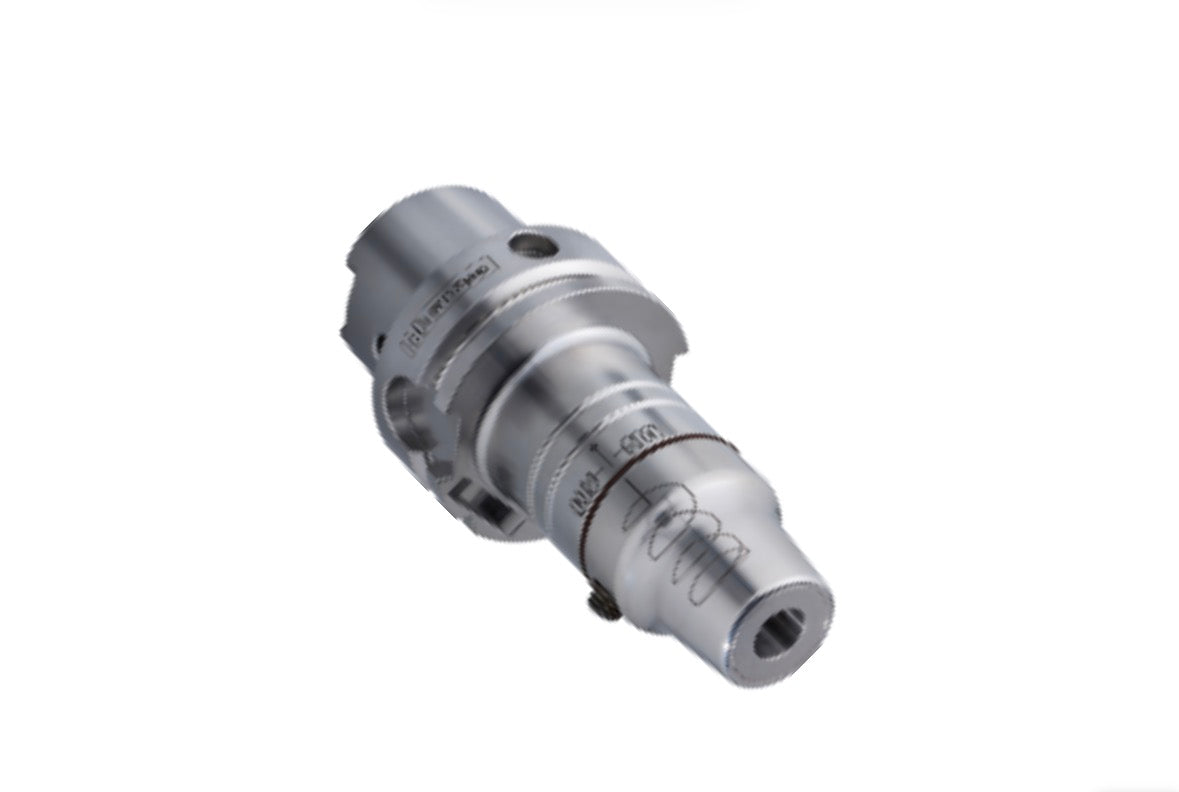

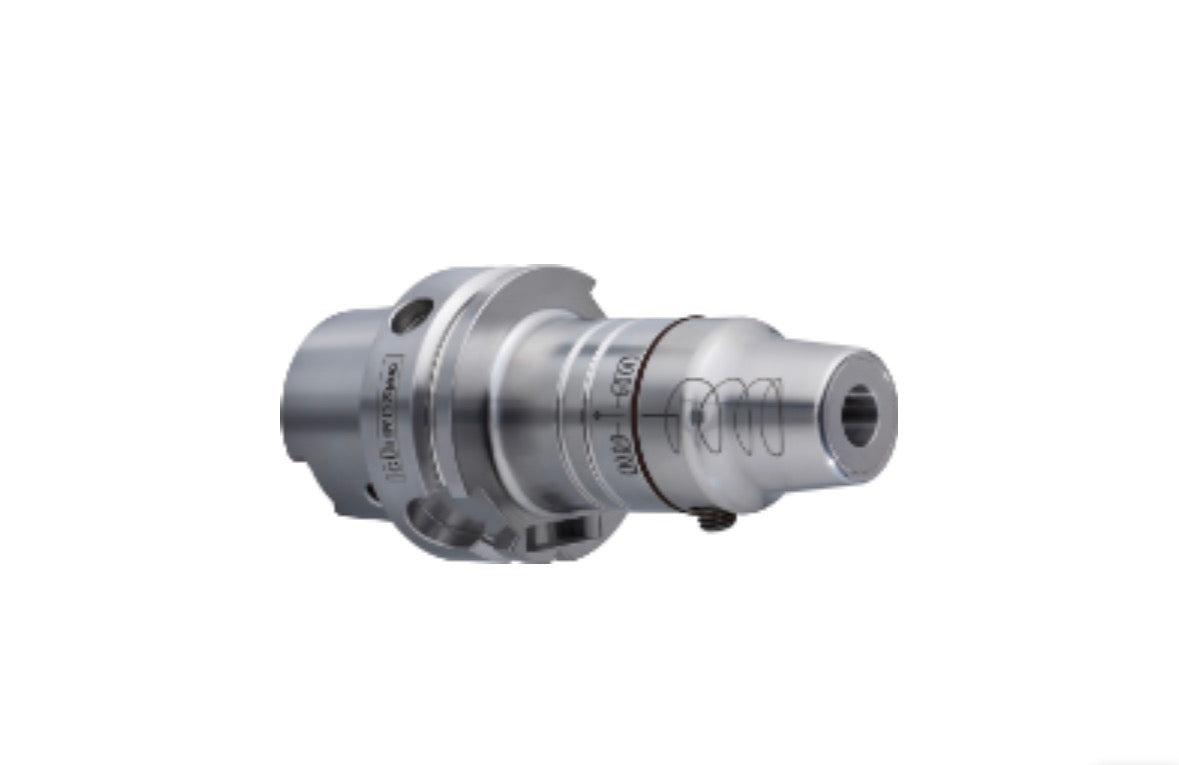

GUHROSync HSK-A 63 tapping chuck M4 to M12

• HSK-A to ISO 12164-1 / DIN 69893-1
• compensates synchronization errors
• minimal length compensation in tension/compression reduces high thread flank friction forces and increases thread quality and tool life
• reduces axial forces during the cutting cycle
• convenient hydraulic clamping using reduction bushings with active drive
• setting screw enables 3 mm length adjustment
• suitable for internal cooling identifiable by black coloured ring
• coolant pressure up to max. 80 bar
• balancing quality: G6,3 / 15,000 rev./min
• incl. hexagon clamping key Series no. 4912
• incl. adjustment key for adjustment screws
• order setting screw “face” Series no. 4364 separately
• order reduction sleeves Series no. 4605 or 4606 separately
• for conventional cooling order coolant supply set Series no. 4949 separately
