Infoblox TE-4106-HW-AC Network Management Devices
Description

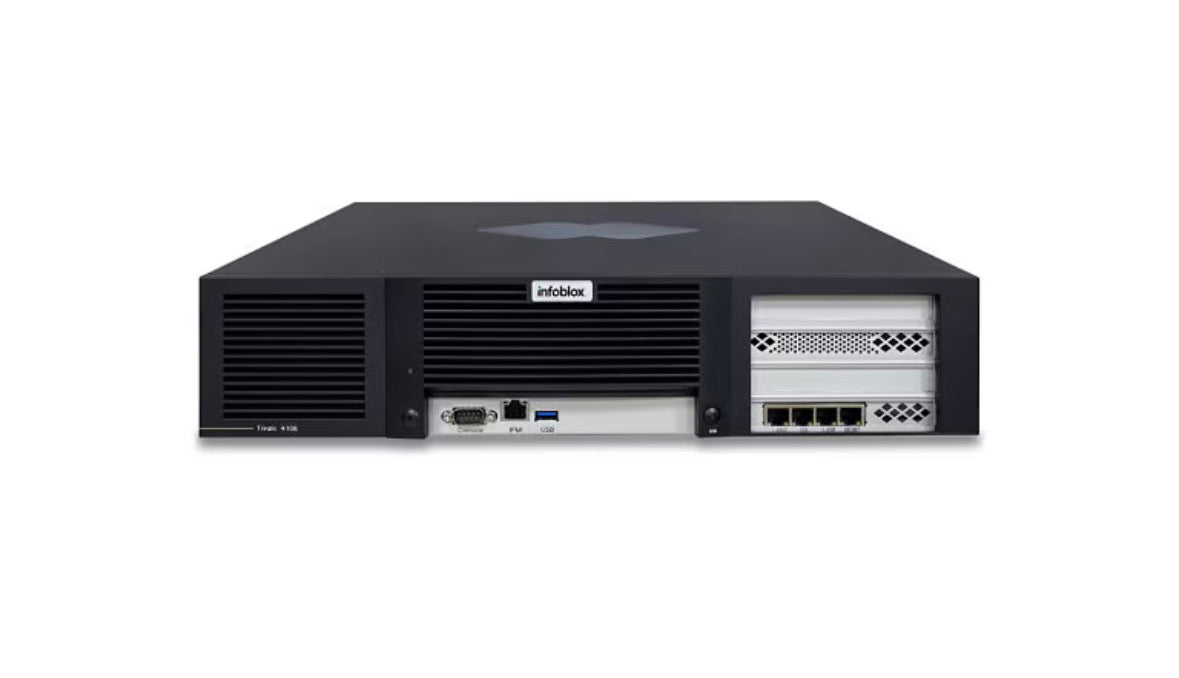

Infoblox TE-4106
The Infoblox TE-4106 (TE-4106-10GE-HW-AC) is a 2U infrastructure device from Infoblox. It features 5 network interfaces. The NDX catalog provides enrichment data across 6 categories including lifecycle, thermal, environmental, operational.
Last verified: August 14, 2026
Key Facts
| Manufacturer | Infoblox |
|---|---|
| Model | TE-4106 |
| Part Number | TE-4106-10GE-HW-AC |
| Type | Device Type |
| Form Factor | 2U, full-depth |
| Airflow | front-to-rear |
| Weight | 29 lb |
| Interfaces | 5 ports |
| Source | NetBox Labs |
| Enrichment | 6 categories available |
Specifications
Interfaces (5)
| Name | Type | Mgmt Only | Label |
|---|---|---|---|
| LOM | 1000base-t | true | |
| MGMT | 1000base-t | true | |
| LAN1 | 1000base-t | ||
| LAN2 | 1000base-t | ||
| HA | 1000base-t |
Power Ports (2)
| Name | Type | Max Draw (W) | Allocated (W) |
|---|---|---|---|
| PS0 | iec-60320-c14 | 500 | 250 |
| PS1 | iec-60320-c14 | 500 | 250 |
Console Ports (1)
| Name | Type |
|---|---|
| Serial | de-9 |
Data Sources & Provenance
| Field | Type | Confidence | Source |
|---|---|---|---|
| operational.max_power_draw_watts | vendor documentation | high | docs.infoblox.com |
| operational.typical_power_draw_watts | vendor documentation | high | docs.infoblox.com |
| environmental.max_operating_temp_c | vendor documentation | medium-high | docs.infoblox.com |
| lifecycle.ga_date | partner specs | medium | www.cdw.com |
| operational.max_power_draw_watts | vendor documentation | medium-high | docs.infoblox.com |
| thermal.cooling_type | vendor documentation | high | docs.infoblox.com |
| environmental.min_operating_temp_c | vendor documentation | high | docs.infoblox.com |
| environmental.operating_humidity_min | vendor documentation | high | docs.infoblox.com |
| environmental.operating_humidity_max | vendor documentation | high | docs.infoblox.com |
| environmental.operating_altitude_m | vendor documentation | high | docs.infoblox.com |
| dtl.power-ports | vendor documentation | high | docs.infoblox.com |
| dtl.interfaces | vendor documentation | medium-high | docs.infoblox.com |
| dtl.console-ports | vendor documentation | medium-high | docs.infoblox.com |
| dtl.power-ports | vendor documentation | medium-high | docs.infoblox.com |
| dtl.u_height | vendor documentation | medium-high | docs.infoblox.com |
| dtl.is_full_depth | vendor documentation | medium-high | docs.infoblox.com |
| dtl.weight | vendor documentation | medium-high | docs.infoblox.com |
| dtl.airflow | vendor documentation | medium-high | docs.infoblox.com |
| dtl.part_number | vendor documentation | medium-high | docs.infoblox.com |
| platform.nos | vendor documentation | high | docs.infoblox.com |
Showing 20 of 22 provenance entries.
Frequently Asked Questions
What is the Infoblox TE-4106?
The Infoblox TE-4106 (TE-4106-10GE-HW-AC) is a 2U infrastructure device from Infoblox. It features 5 network interfaces. The NDX catalog provides enrichment data across 6 categories including lifecycle, thermal, environmental, operational.
What is the form factor of the Infoblox TE-4106?
The Infoblox TE-4106 is a 2U full-depth device with front-to-rear airflow. It weighs 29 lb.
How many ports does the Infoblox TE-4106 have?
The Infoblox TE-4106 has 5 network interfaces: 5x 1000base-t.
What are the power requirements for the Infoblox TE-4106?
The Infoblox TE-4106 has 2 power ports (iec-60320-c14, iec-60320-c14). Maximum power draw is 500W (fed by 2 redundant power ports; each carries up to 500W with a partner failed, 250W in normal operation).
Is the Infoblox TE-4106 still supported?
Lifecycle data is available for the Infoblox TE-4106 in the NDX catalog. Access full lifecycle dates including general availability, end-of-sale, and end-of-support through NetBox Cloud or Enterprise.
What operational data is available for the Infoblox TE-4106?
The NDX catalog includes enrichment data for the Infoblox TE-4106 in the following categories: lifecycle, thermal, environmental, operational, platform, snmp. Full enrichment values are available through NetBox Cloud or Enterprise.
How do I add the Infoblox TE-4106 to NetBox?
You can import the Infoblox TE-4106 directly into NetBox via the NDX features available in NetBox Cloud and NetBox Enterprise. NetBox Community users may download the YAML type definition and import it manually.
Where does the Infoblox TE-4106 data come from?
The Infoblox TE-4106 device type definition was created and is maintained by NetBox Labs as part of the NDX catalog.
