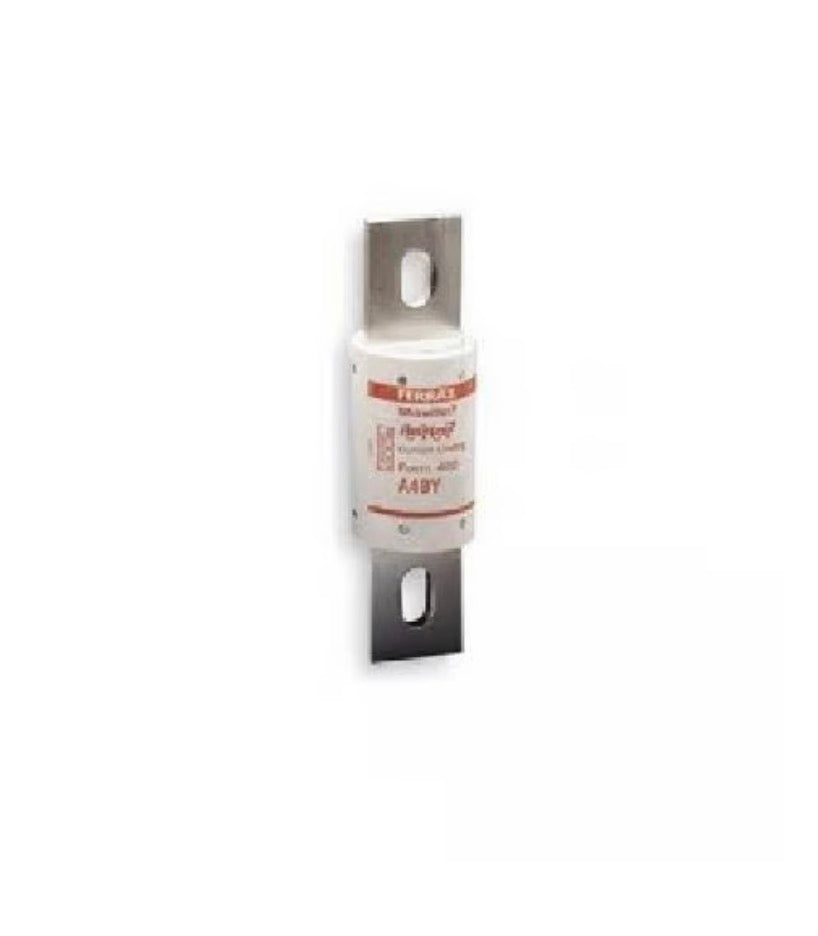

Mersen Amp-Trap® A4BY800 Current Limiting Low Voltage Time Delay Fuse, 800 A, 600 VAC/300 VDC, 200/100 kA Interrupt, L Class, Cylindrical Body
Description
Amp-Trap A4BY fuses have been the industry's favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100% rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500% rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Features
- Unique dimensions prevent replacement by other fuse classes
- Blade stamped catalog numbers for permanent identification
- Glass melamine body and plated terminals provide superior reliability in harsh environments
- Uniform characteristics in all ampere ratings
- North American power fuses
Specification
| Interrupt Rating |
200/100 kA
|
|---|---|
| Material |
GMG
|
| Mounting Type |
Bolt-On
|
| Amperage Rating |
800 A
|
| Body Size |
2-1/2 in Dia x 8-5/8 in L
|
| Body Style |
Cylindrical
|
| Catalog ID |
GOUA4BY800
|
| Class |
L
|
| Element |
Dual
|
| Response Time |
4 sec at 500%
|
| Series |
A4BY
|
| Terminal Type |
Knife Blade
|
| Type |
Current Limiting
|
| Voltage Rating |
600 VAC/300 VDC
|
| Application |
Mains, Feeders, Circuit Breakers, Load Centers, Panelboards, Switchboards and Metering Centers
|
| Standard & Approvals |
UL 248-10 File E2137, DC UL 248, CSA C22.2 No. 248.10, IEC 269-2-1 , RoHS Complaint
|
Vendor: Mersen
