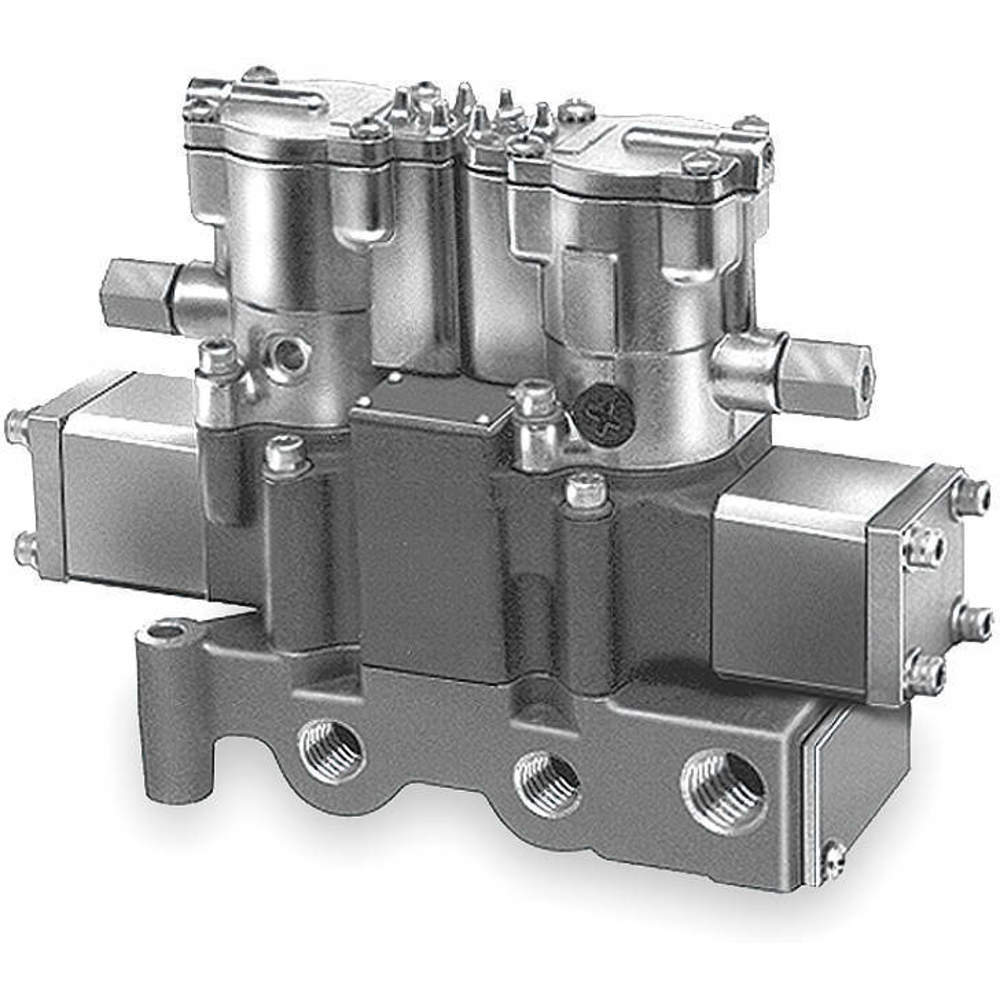

PARKER L6558910253 Solenoid Air Control Valve 1 Inch 120vac
Description
- Parker Valvair II Four-Way. Manifold Mounted valves have been trusted for years in applications requiring a heavy-duty, all-metal valve that will shift when called upon, even after being idle for an extended period of time. The solenoid/air pilot design of this valve uses line pressure to shift the spool. Single solenoid valves may be mounted in any position. Double solenoid valves should be mounted horizontally. Synthetic rubber o-ring seals are specially compounded for superior wear and abrasion resistance. Solenoids are encapsulated in epoxy for low power consumption and maximum life. These valves are very tolerant to contamination both inside and out. In dirty applications like foundries, steel mills, tire plants, aggregate plants and mines, they can be real problem solvers.
applications
- Foundries
- Steel mills
- Tire plants
- Aggregate plants
- Mines
features
- Lubrication recommended
| Spool Description | N/A |
| Operating Pressure Range | 35 psi to 140 psi |
| Port Size | 1 in |
| Voltage Rating | 120 VAC, 60 Hz |
| Installed Options | None |
| Port Type | NPT |
| Wiring Options | None |
| Length | 7.380 in |
| Lights | Yes |
| Basic Size | 1 in |
| Valve Type | 4-Way, 2 Position |
| Solenoid | Double |
| Valve Duty | Standard Duty |
| Return Type | Solenoid |
| Cv Flow | 11.3 |
| Valve Size | 1 in |
| Coil Style | Encapsulated |
| Operation | Electric |
| Height | 6.930 in |
| Valve Body Style | Manifold Mounted |
| Actuator Type | Solenoid |
| Overrides | No Overrides |
| Series | Valvair II Series |
| Operator | Solenoid w/Light & Locking Override |
| Stations | N/A |
| Weight | 12.333 LB |
Vendor: Parker
