RKF36200U31A

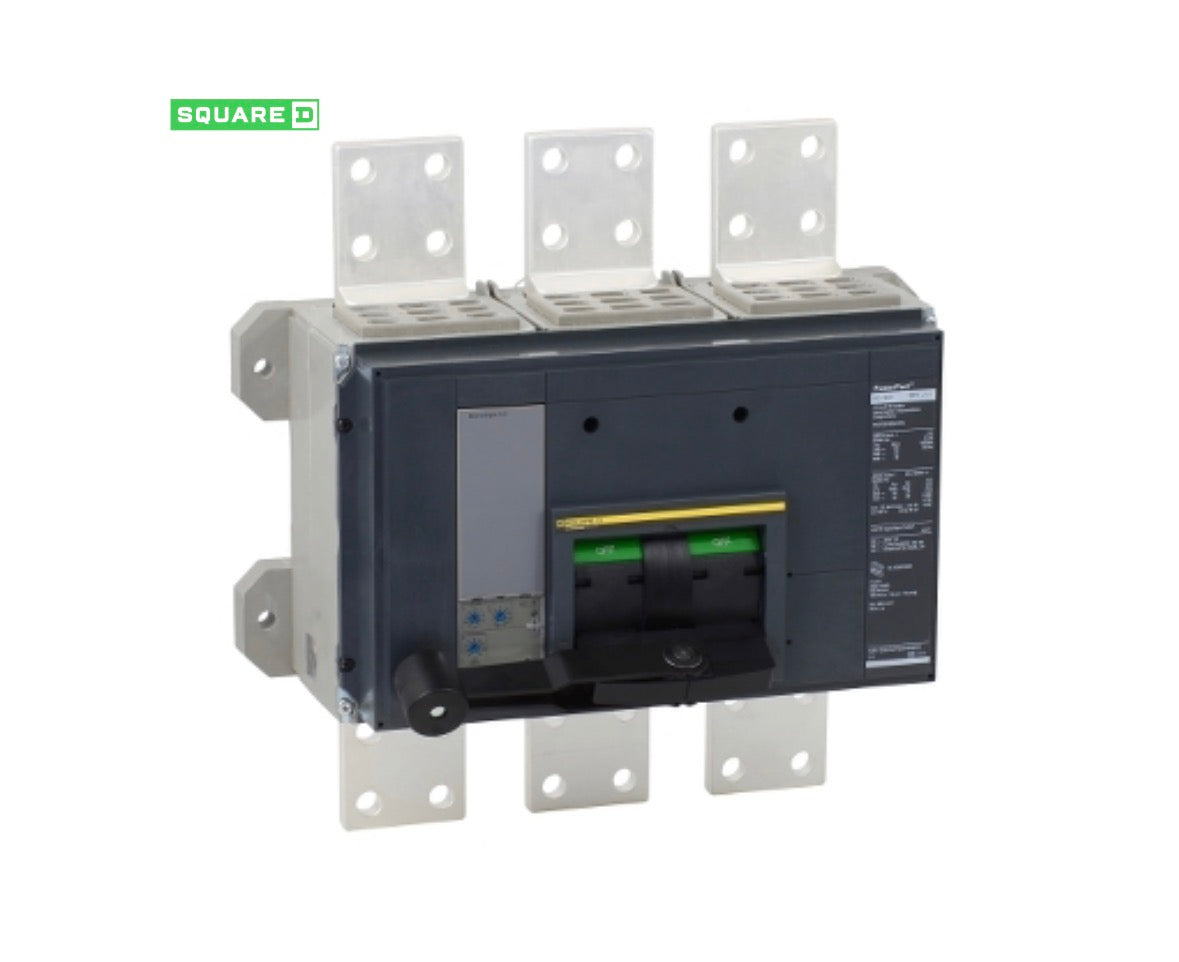

PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2000A, 3 pole, circuit breaker has an interrupting rating of 65kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

RangePowerPactProduct namePowerPact RProduct or Component TypeCircuit breakerDevice ApplicationDistribution

Line Rated Current2000 ANumber of Poles3PControl TypeOperating handleBreaking capacity codeKBreaking capacityAIR 65 kA 240 V AC 50/60 Hz UL 489
AIR 65 kA 480 V AC 50/60 Hz UL 489
AIR 65 kA 600 V AC 50/60 Hz UL 489
Icu 85 kA 240 V AC 50/60 Hz IEC 60947-2
Icu 70 kA 380/415 V AC 50/60 Hz IEC 60947-2[Ue] rated operational voltage600 V AC 50/60 Hz UL 489Network Frequency50/60 Hz[Ics] rated service breaking capacity65 kA 240 V AC 50/60 Hz IEC 60947-2
55 kA 380/415 V AC 50/60 Hz IEC 60947-2[Uimp] rated impulse withstand voltage8 kV IEC 60947-2Trip unit technologyElectronic, standard, MicroLogic 3.0, LIContinuous current rating80 %[Ui] rated insulation voltage750 V IEC 60947-2Trip unit nameMicroLogic 3.0Suitability for isolationYes IEC 60947-2Utilisation categoryCategory AAWG gauge3/0 AWG...750 kcmil aluminium/copperLocal signallingAlarm 1 LED yellow)long-time pick up)Mounting modeUnit mount busbar)Mounting SupportBusbarElectrical connectionBusbar connection, line
Busbar connection, loadTerminal identifierAL2500RKTightening torque548.7 lbf.in (62 N.m) 0.08…0.6 in² (50…400 mm²) (1/0 AWG...750 kcmil)
548.7 lbf.in (62 N.m) 0.08…0.2 in² (50…150 mm²) (2 x 1/0 AWG...2 x 300 kcmil)Number of slots2 auxiliary switch OF plug-in)
1 alarm switch SD plug-in)
1 voltage release MN or MX plug-in)Power wire stripping length1.4 in (35 mm)Height16.24 in (412.50 mm)Width16.54 in (420.12 mm)Depth14.49 in (368.05 mm)Net Weight52 lb(US) (23.6 kg)Quantity per Set1Circuit breaker applicationHACR rated
