RKF36250U44A

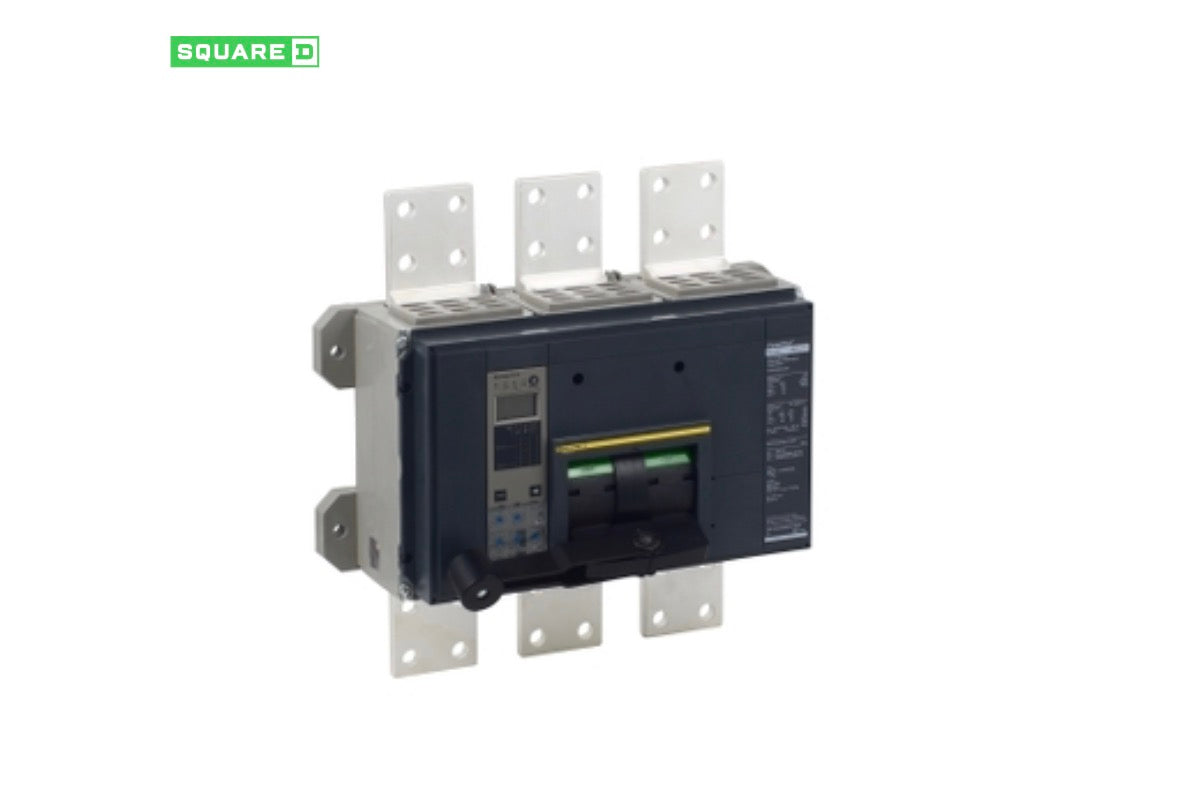

PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Ammeter with a 6.0A trip unit and an LSIG function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has a busbar connection. This PowerPacT P, 2500A, 3 pole, circuit breaker has an interrupting rating of 65kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Line Rated Current2500 ANumber of Poles3PControl TypeOperating handleBreaking capacity codeKBreaking capacityAIR 65 kA 240 V AC 50/60 Hz UL 489
AIR 65 kA 480 V AC 50/60 Hz UL 489
AIR 65 kA 600 V AC 50/60 Hz UL 489
Icu 85 kA 240 V AC 50/60 Hz IEC 60947-2
Icu 70 kA 380/415 V AC 50/60 Hz IEC 60947-2[Ue] rated operational voltage600 V AC 50/60 Hz UL 489Network Frequency50/60 Hz[Ics] rated service breaking capacity65 kA 240 V AC 50/60 Hz IEC 60947-2
55 kA 380/415 V AC 50/60 Hz IEC 60947-2[Uimp] rated impulse withstand voltage8 kV IEC 60947-2Trip unit technologyElectronic, ammeter, MicroLogic 6.0 A, LSIGContinuous current rating80 %[Ui] rated insulation voltage750 V IEC 60947-2Trip unit nameMicroLogic 6.0 ASuitability for isolationYes IEC 60947-2Utilisation categoryCategory AAWG gauge3/0 AWG...750 kcmil aluminium/copperLocal signallingAlarm 1 LED yellow)long-time pick up)
1 LED red)long-time pick up)
Trip causes 1 LED red)
1 LED red)digital ammeter)
Ground indicator 1 LED red)
Phase-loading LED green)load balancing)Mounting modeUnit mount busbar)Mounting SupportBusbarElectrical connectionBusbar connection, line
Busbar connection, loadTerminal identifierAL2500RKTightening torque548.7 lbf.in (62 N.m) 0.08…0.6 in² (50…400 mm²) (1/0 AWG...750 kcmil)
548.7 lbf.in (62 N.m) 0.08…0.2 in² (50…150 mm²) (2 x 1/0 AWG...2 x 300 kcmil)Number of slots2 auxiliary switch OF plug-in)
1 alarm switch SD plug-in)
1 voltage release MN or MX plug-in)Power wire stripping length1.4 in (35 mm)Height16.24 in (412.50 mm)Width16.54 in (420.12 mm)Depth14.49 in (368.05 mm)Net Weight52 lb(US) (23.6 kg)Quantity per Set1Circuit breaker applicationHACR rated
