SPD250480D3C Eaton Tripp Lite
Description

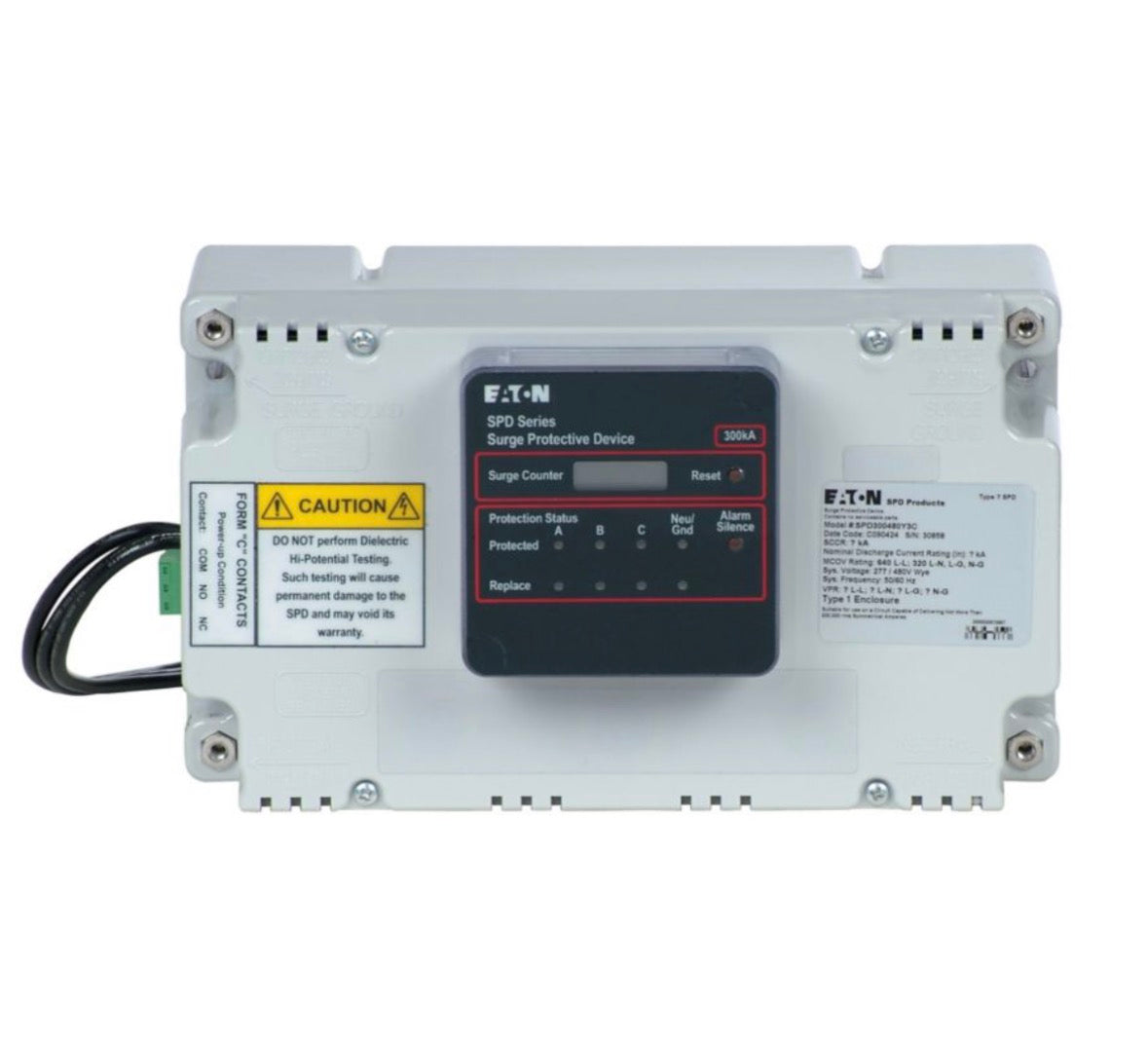

Surge Protection Device, SPD series, For switchboard, busways and panel boards (PRL1a, 2a, 3a, 3E, 4), 250 kAIC, 480V delta (3W+G), Standard feature package and surge counter, Internal integrated mount, 640 L-G, 640 L-L operating voltage
| Accessories |
Standard feature package and surge counter
|
| Frequency rating |
50/60 Hz
|
| Interrupt rating |
200 kAIC
|
| Nominal Discharge Current |
20 kA
|
| Operating voltage |
640 L-G, 640 L-L
|
| Used with |
Switchboard, busways and panelboards (PRL1a, 2a, 3a, 3e, 4)
|
| Voltage rating |
480 delta (3W+G)
|
| Surge current |
250 kA per phase
|
| Short-circuit rating |
200 kA
|
| Operating temperature |
-40 to 50 °C
|
| Mounting Method |
Internal integrated
|
| Type |
SPD
|
| Special features |
Meets or exceeds the requirements specified in IBC ®2006, CBC2007, and UBC®Zone 4. Audible alarm with silence button. Form C relay contact. EMI/RFI filtering, providing up to 50 dB of noise attenuation from 10 kHz to 100 MHz. Surge counter with rest button
|
Vendor: EATON
