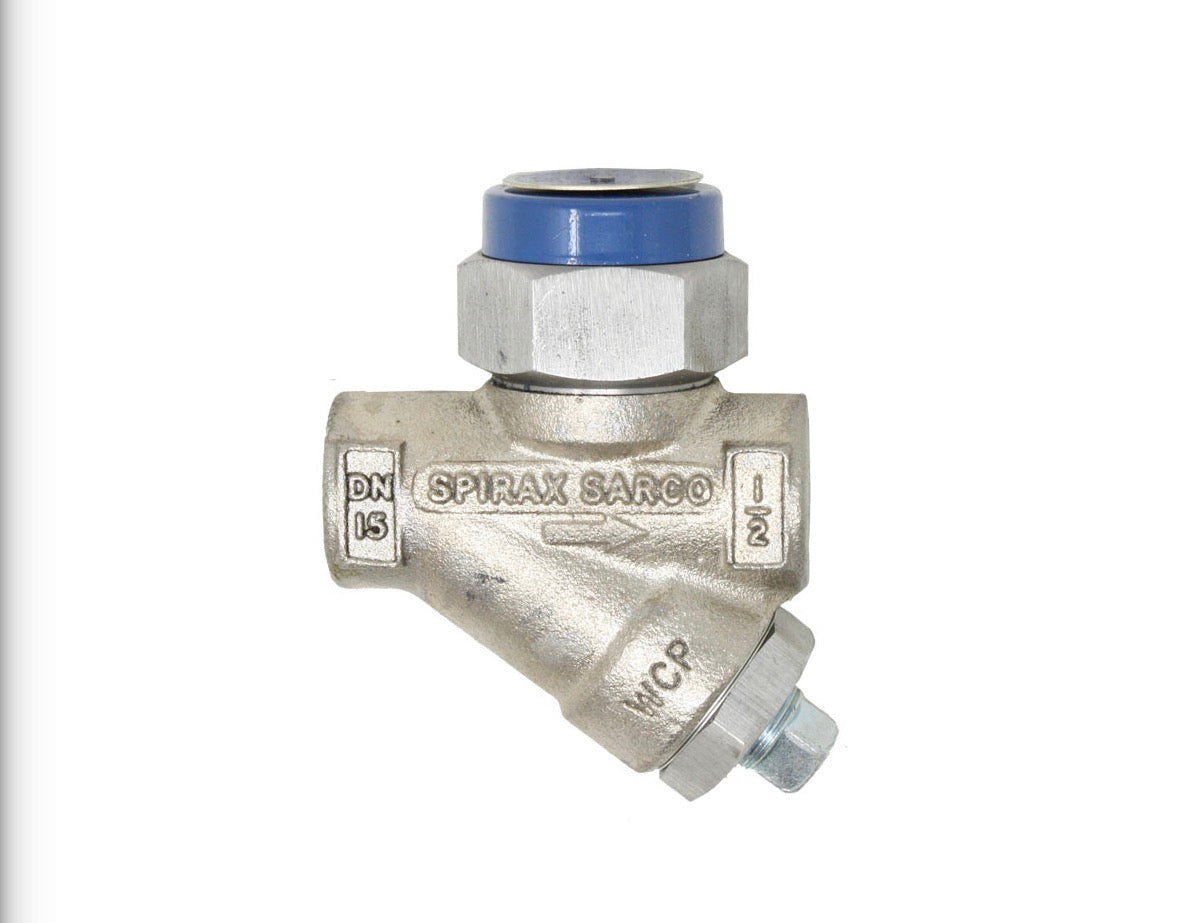

Spirax Sarco 0680662, TD42H High Capacity Thermo-Dynamic Steam Trap, 1/2 in, FNPT, 752 deg F, 600 psig, Stainless Steel
Description
Spirax Sarco Thermo-Dynamic Steam Trap, High Capacity, 1/2 in Nominal, FNPT, 600 psig, Stainless Steel, ENP, Cool Blue, 752 deg F
The Thermodynamic steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by waterhammer or superheat.
Specifications
Brand: Spirax Sarco
Weight: 1.7 lbs
Nominal Size: 1/2 in
End Style: FNPT
Material: Stainless Steel
Max Operating Pressure: 600 psig
Max Allowable Pressure: 914 psig/up to 248 deg F
Max Allowable Temperature: 752 deg F/up to 609 psig
Color: Cool Blue
Finish: ENP
Manufacturer Name: Spirax-Sarco Inc
Series: TD42H
Type: High Capacity
Application: Steam main drainage, Tracer lines, Process equipment, Outdoor installations subject to freezing
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A743 Grade CA40F Body
Item Features
- Maximum allowable pressure: 914 psig up to 248 deg F
- Maximum allowable temperature: 752 deg F at 0 to 609 psig
- Horizontal installation
Vendor: Spirax Sarco
