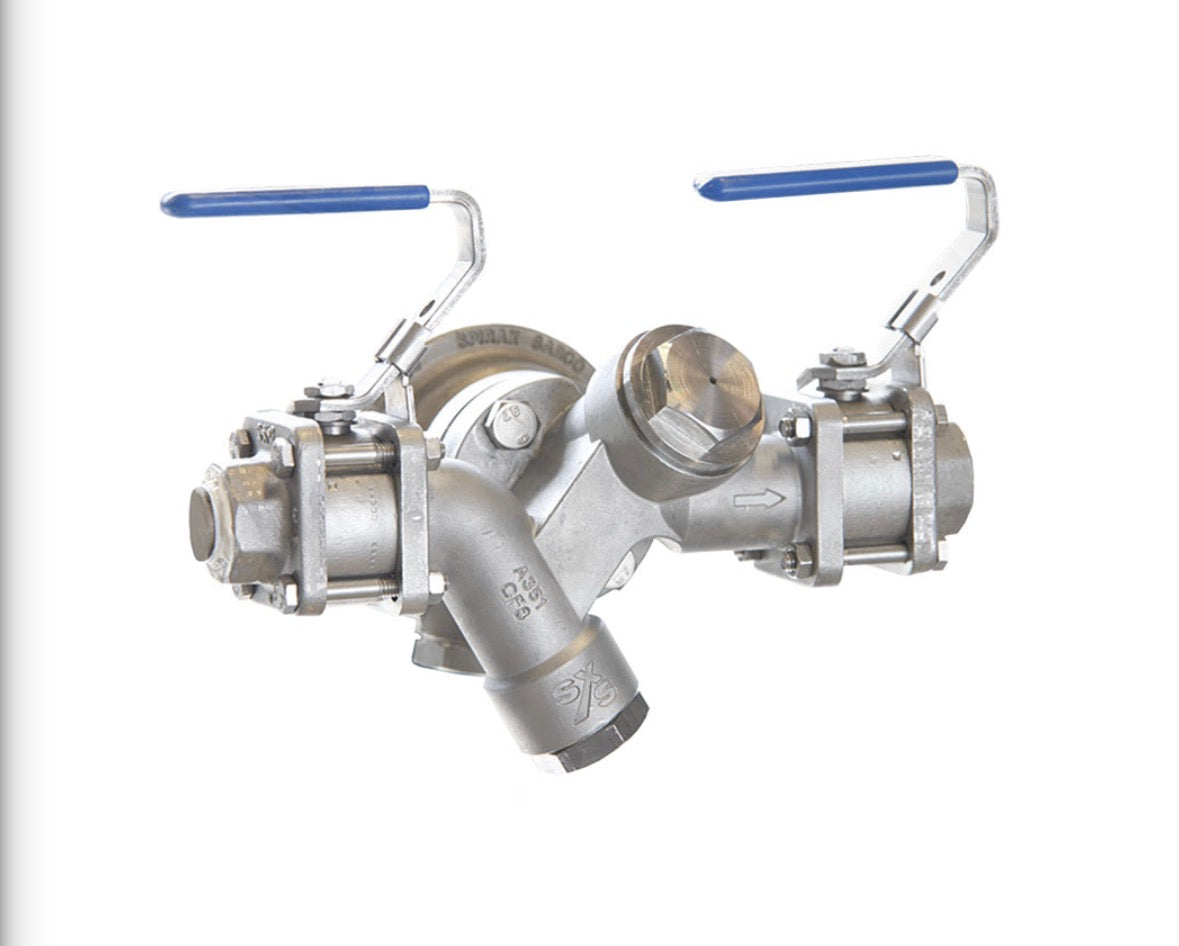

Spirax Sarco 1289191 STS17.2 Compact Pipeline Connector Steam Trapping Station
Description
Spirax Sarco Pipeline Connector Steam Trapping Station, Compact, 3/4 in Nominal, NPT, 8.7 in Face To Face, 254 psig, 446 deg F, Stainless Steel, 8.7 in L
The STS17.2 steam trap station has been designed to provide a convenient "ready-to-install" trapping solution which has an upstream isolation valve, a universal connector with strainer, a check valve and a downstream isolation valve.
SPECIFICATIONS
Brand: Spirax Sarco
Weight: 11.6 lbs
Nominal Size: 3/4 in
Connection Type: FNPT
Pressure Rating: 254 psig
Face to Face Dimensions: 8.7 in
Material: Stainless Steel
Dimensions: 8.7 in L
Manufacturer Name: Spirax-Sarco Inc
Temperature Rating: 446 deg F
Type: Compact
Warranty: 10 Years
Country of Origin: US
Standards and Approvals: ASTM A351 Grade CF8 Body | European Pressure Equipment Directive 97/23/EC
ITEM FEATURES
- Quick and simple maintenance of the steam trap with simple two-bolt connector, reducing system downtime and maintenance costs compared to traditional trapping stations
- Single permanent in-line component, ease of specification and installation
- Pre-assembled construction minimizing on-site fabrication, quick and easy installation, no screwed connections therefore reducing potential leak paths
- All stainless steel construction, long and trouble-free life with good corrosion resistance and cleanliness
- Compatible steam trap options providing flexible supply and selection
- An in-trap sensing option providing automatic steam trap operation indication
- Note: All certification/inspection requirements must be stated at the time of order placemen
- Single upstream isolation configuration
- Maximum allowable pressure: 580 psig at 248 deg F
- Maximum allowable temperature: 446 deg F at 145 psig
- Designed for a maximum cold hydraulic test pressure of 870 psig
- Maximum allowable/operating temperature: 446 deg F at 145 psig
- Minimum allowable/operating temperature: 14 deg F
